Cartridge Filter
Cartridge Filter
Mechotech engineers and manufactures the Cartridge Filter as turnkey process equipment for pharmaceutical, nutraceutical, food, and botanical processing lines that need fine, final-stage liquid filtration. Each unit is designed around the client's specific process parameters and target output, then fabricated, installed, and commissioned by Mechotech as a single accountable scope.

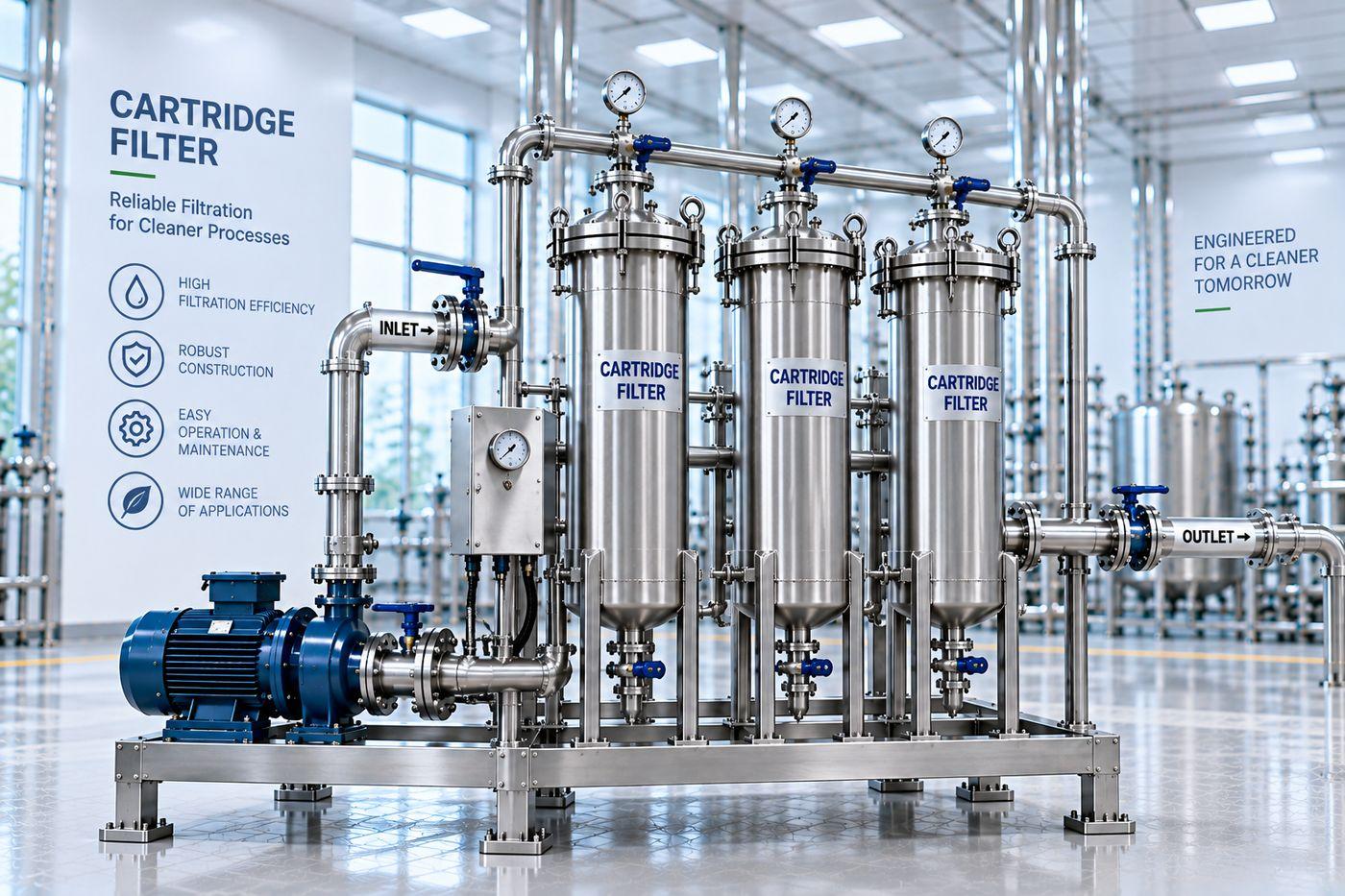

The Cartridge Filter is built in SS 316L (or a process-appropriate grade) as one or more housings holding replaceable filter cartridges, through which the process liquid is passed to remove fine particulates before the cartridges are replaced at the end of their service life, with electropolished product-contact surfaces and integrated instrumentation so it can be operated under PLC-based control. Capacity is configured to the customer's requirement, from pilot-scale systems for process validation to larger commercial installations with modular expansion, and every unit is delivered with full documentation to support GMP and regulatory qualification.
Technical Specifications
| Product | Cartridge Filter |
|---|---|
| Equipment Category | Filtration Equipment |
| Filtration Duty | Fine, final-stage liquid filtration of process liquid |
| Configuration | One or more housings holding replaceable filter cartridges, with manifold piping |
| Product-contact Material | SS 316L (or a process-appropriate grade), electropolished |
| Instrumentation / Automation | Integrated instrumentation; PLC-based control |
| Plant Capacity | Configured to requirement — pilot-scale validation to commercial installations, with modular expansion |
| Compliance | GMP hygienic design; full documentation for qualification |
| Scope of Supply | Turnkey: design, fabrication, installation and commissioning by Mechotech |
Manufacturing Process
Engineering & Design
Mechotech's process engineers size and configure the Cartridge Filter around the client's feed material, housing count, and target output specification before fabrication begins.
Fabrication & Assembly
The filter housings and manifold piping are fabricated in SS 316L (or a process-appropriate grade), with instrumentation and control automation integrated during assembly rather than added afterward.
Installation & Commissioning
The completed system is installed at the client's site, commissioned, and commissioned as a single accountable unit before handover.
Applications
- Pharmaceutical and nutraceutical process manufacturing
- Botanical and herbal extraction industries
- Food and flavour processing
Key Features
Hygienic SS 316L Construction
Electropolished SS 316L (or process-appropriate grade) product-contact surfaces with housings designed for straightforward cartridge changeover; documentation supports the customer's GMP qualification.
Turnkey Engineering
Design, fabrication, installation, and commissioning are delivered as one accountable scope, so the client deals with a single engineering team from drawing to handover.
Scalable Capacity
The filter is sized to the customer's requirement, from pilot-scale validation through to commercial capacity, with modular expansion as production grows.
Frequently Asked Questions
Does Mechotech supply the complete Cartridge Filter?
What capacities are available for the Cartridge Filter?
Which industries does the catalogue list for the Cartridge Filter?
Where does a cartridge filter sit in an extraction line?
