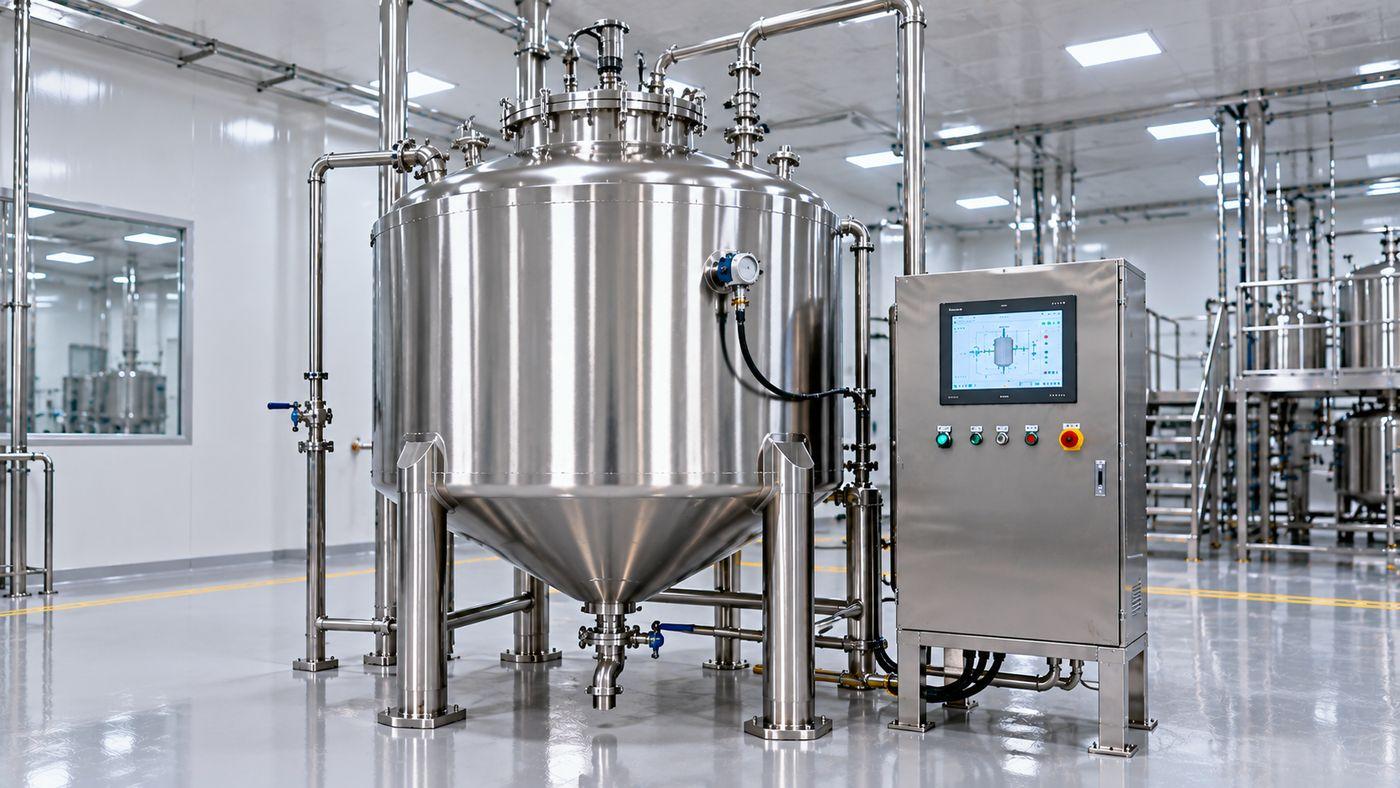

Soxhlet-Type Extraction Plant

The Soxhlet-Type Extraction System scales up the classic Soxhlet principle — continuous reflux of freshly condensed solvent through a solid feed bed — into industrial, GMP-compliant process equipment. Instead of a single static solvent charge contacting the bed once, solvent vapour is continuously boiled off, condensed, and cycled back through the feed bed run after run, so the solids are always contacted by fresh, near-solute-free solvent while extracted compounds accumulate in the boiling flask or a separate collection vessel. This repeated-reflux action drives extraction closer to exhaustion than a single soak or percolation pass, making it well suited to feedstocks that hold their target compounds tightly within the matrix. Mechotech engineers turnkey Soxhlet-type systems configured to each feedstock, solvent, and target compound.

In a Soxhlet-type system, solvent in the boiler/reboiler is heated to vapour, which rises to a condenser and returns as clean, distilled liquid onto the solid bed held in the extraction chamber above. Solvent percolates through the bed, dissolving target compounds, and once the liquid level in the chamber reaches the siphon (overflow) point, the accumulated miscella siphons back down into the boiler — a self-repeating cycle that contacts the bed with fresh solvent on every pass rather than solvent that is progressively more saturated, as in a single static soak. Because only clean, re-condensed solvent ever touches the bed, extraction efficiency and yield are typically higher than single-pass maceration or percolation for tightly bound compounds, at the cost of longer cycle times and the thermal exposure that reflux boiling implies. Mechotech fabricates the extraction chamber, boiler/reboiler, condenser, siphon assembly and solvent-recovery circuit in SS 316L (or a process-appropriate grade) with electropolished product-contact surfaces, PLC-based automation, and capacity configured from pilot-scale to larger commercial installations, delivered with full documentation to support GMP and regulatory qualification.

Technical Specifications

Technology	Soxhlet-type continuous-reflux solvent extraction
Working Principle	Solvent is boiled, condensed, and cycled through the feed bed via siphon discharge, so only fresh solvent contacts the solids on each pass
Cycle Type	Repeated boil-condense-percolate-siphon reflux cycles
Product-contact Material	SS 316L (or process-appropriate grade), electropolished
Automation	PLC-based control with cycle counting and process monitoring
Solvent Recovery	Integrated reflux loop with downstream evaporation/distillation for solvent reuse
Capacity	Configured to requirement — pilot-scale to larger commercial installations with modular expansion
Compliance	WHO-GMP, Schedule M hygienic design

Manufacturing Process

Bed Loading

Prepared, sized feed material is loaded into the extraction chamber and supported on a perforated basket or false bottom above the boiler.

Solvent Charging & Heating

Solvent is charged to the boiler/reboiler and heated to generate solvent vapour, which rises past the extraction chamber to the condenser.

Condensation & Reflux

Solvent vapour is condensed to clean liquid and returns onto the feed bed, percolating through it and dissolving target compounds as it passes.

Siphon Discharge

Once the liquid level in the extraction chamber reaches the siphon point, the accumulated miscella is automatically drawn back down into the boiler, completing one reflux cycle.

Repeated Cycling

The boil-condense-percolate-siphon cycle repeats continuously, so the bed is contacted by fresh, re-condensed solvent on every pass until the target extraction level is reached.

Solvent Recovery & Concentration

Once extraction is complete, the solvent-rich boiler contents are routed to evaporation/distillation to recover solvent for reuse and concentrate the extract.

Bed Discharge & CIP

The spent, solvent-wet marc is discharged from the extraction chamber, which is then cleaned in place ahead of the next charge.

Major Plant Equipment

Extraction chamber with perforated basket / false bottom
Boiler / reboiler vessel
Reflux condenser
Siphon (overflow) assembly
Solvent recovery and concentration circuit
Bed discharge system
CIP skid and spray-ball connections
PLC-based control panel

Plant Output

Concentrated extract (extract-in-solvent, further concentrated on recovery)Discharged spent marc / de-oiled solids

Applications

Pharmaceutical and nutraceutical actives extracted from tightly bound plant matrices
Phytochemical and reference-standard extraction for R&D and quality control
Oleoresin, wax and fat extraction from seeds and botanical solids
Analytical and pilot-scale extraction ahead of process scale-up
Applications where exhaustive recovery matters more than short cycle time
Export to regulated-market equipment buyers

Key Features

Continuous Fresh-Solvent Reflux
Only clean, re-condensed solvent contacts the bed on every cycle, driving extraction closer to exhaustion than a single static soak or pass.
High Recovery for Tightly Bound Compounds
Repeated reflux cycling suits feedstocks that resist single-pass extraction, improving yield where percolation or maceration alone falls short.
Integrated Solvent Recovery
The boil-condense-siphon cycle is inherently a closed solvent loop, and downstream recovery further concentrates the extract while minimising solvent loss.
GMP-Compliant Construction
Electropolished product-contact surfaces meet WHO-GMP and Schedule M requirements, and the system is cleaned in place (CIP) between batches.
Turnkey Engineering
Design, fabrication, installation, and commissioning are delivered as one accountable scope, so the client deals with a single engineering team from drawing to handover.
Scalable Capacity
The system is sized to the customer's requirement, from pilot-scale validation through to larger commercial installations, with modular expansion as production grows.

Frequently Asked Questions

What is a Soxhlet-Type Extraction System and how does it work?

A Soxhlet-Type Extraction System scales up the classic Soxhlet principle into industrial equipment: solvent is boiled and condensed, and the clean condensate percolates through a solid feed bed held above the boiler. Once the liquid level in the extraction chamber reaches the siphon point, the accumulated miscella drains back into the boiler, and the cycle repeats — so the bed is always contacted by fresh, re-condensed solvent rather than solvent that becomes progressively more saturated.

How is a Soxhlet-type system different from Mechotech's Percolation or Batch Extractor?

In a Percolation Extractor or Batch Extractor, the same solvent charge contacts the bed once (or is manually recirculated), becoming progressively more saturated with extract. A Soxhlet-type system continuously boils off and re-condenses the solvent, so only fresh, near-solute-free solvent ever touches the bed on each reflux cycle — typically driving extraction closer to exhaustion for compounds that are tightly bound in the matrix, at the cost of longer cycle times from the repeated boiling.

When is a Soxhlet-type system preferred over Pressurized Liquid Extraction?

Pressurized Liquid Extraction uses heat and pressure to speed up a single or staged extraction and is significantly faster with lower solvent use. A Soxhlet-type system is preferred where exhaustive recovery from a tightly bound matrix is the priority and longer cycle times are acceptable, or where the established Soxhlet method is the qualified/validated reference process for a given product.

Does Mechotech supply the complete Soxhlet-Type Extraction System?

Yes. Mechotech is a process equipment manufacturer and supplier, engineering and fabricating the complete Soxhlet-Type Extraction System — extraction chamber, boiler, condenser, siphon assembly, and solvent recovery circuit — at our Hyderabad facility, installing and commissioning it as a single performance-verified system.

What capacities are available for the Soxhlet-Type Extraction System?

Mechotech builds the Soxhlet-Type Extraction System from pilot and R&D-scale units for product development and method validation through to larger commercial capacities. Capacity is selected based on feedstock/throughput requirements, confirmed buyer volume, and investment timeline; we recommend a pilot system to validate parameters before scaling.

Which industries use Soxhlet-type extraction systems?

Pharmaceutical, nutraceutical, and botanical-extraction manufacturers use Soxhlet-type systems for actives and reference standards that require exhaustive recovery, along with R&D and quality-control labs scaling up from analytical Soxhlet methods to pilot or production equipment.
