Pressure Nutsche Filter

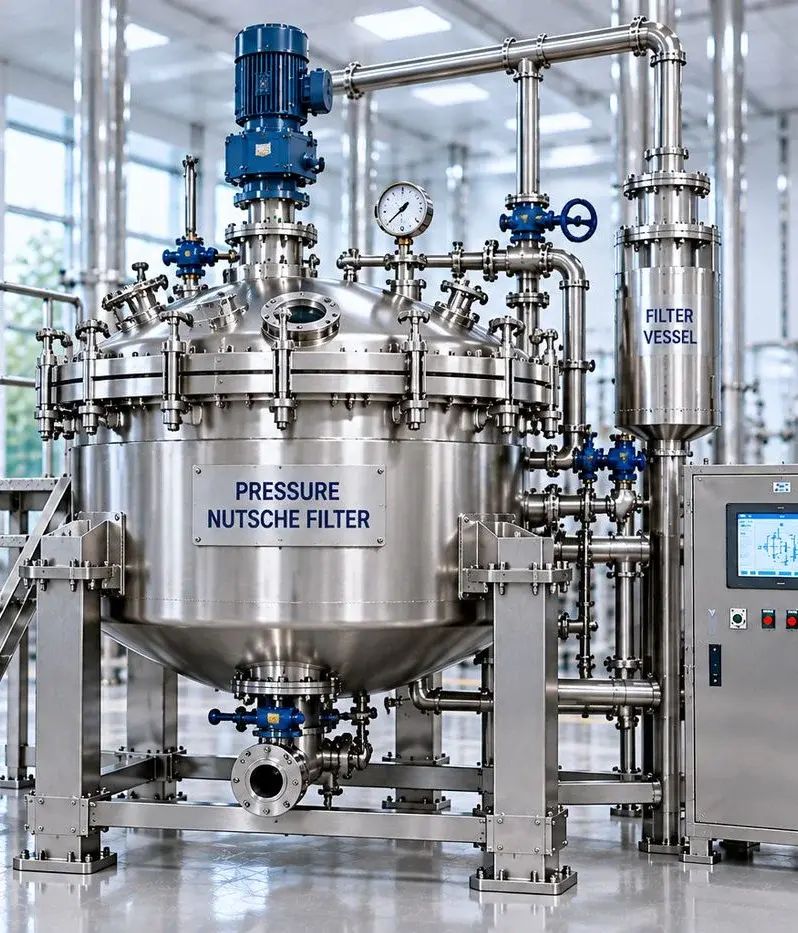

A pressure Nutsche filter is an enclosed pressure vessel with a perforated filter plate on which the solid cake collects as the process liquid is forced through under applied pressure rather than vacuum. Mechotech engineers and manufactures the Pressure Nutsche Filter as turnkey process equipment for pharmaceutical, nutraceutical, food and botanical processing lines that need enclosed, pressure-driven solid-liquid separation. Each unit is configured to the client’s feed and target output, then fabricated, installed and commissioned by Mechotech as a single accountable scope.

The Pressure Nutsche Filter is built in SS 316L (or a process-appropriate grade) as a fully enclosed pressure vessel with a perforated filter plate, with electropolished product-contact surfaces and integrated instrumentation so it can be cleaned in place between batches and operated under PLC-based control. The filtrate leaves through the outlet to a receiver. Filtration area, vessel size, operating pressure rating, cake washing and discharge arrangements are configured to the client’s requirement and confirmed during process design and pilot validation; no fixed figures are quoted on this page.

Technical Specifications

Product	Pressure Nutsche Filter
Technology	Nutsche filtration under applied pressure — enclosed pressure vessel with a perforated filter plate
Working Principle	The solid cake collects on the filter plate as the process liquid is forced through it under applied pressure rather than vacuum
Driving Force	Applied pressure, configured to the duty; the vacuum variant is the separate Nutsche Filter page
Filter Medium	Perforated plate with a filter medium selected for the feed
Vessel Construction	SS 316L (or process-appropriate grade), electropolished product-contact surfaces; pressure rating configured to the duty
Filtrate Collection	Filtrate outlet to a receiver vessel
Cleaning	Clean-in-place (CIP) between batches
Automation	PLC-based control with integrated instrumentation
Capacity	Configured to requirement — pilot to commercial, with modular expansion
Compliance	GMP hygienic design; full documentation for qualification
Output	Filtrate (clarified process liquid) and retained solid cake

Plant Capacities

Scale	Typical Duty	Configuration
Pilot	Process validation and small-batch solid-liquid separation	Small pressure Nutsche vessel with a filtrate receiver
Production	Plant-scale batch filtration	Filter plate area, vessel size and pressure rating configured to the feed and the cake volume
Large commercial	Larger batch volumes	Larger vessel and ancillaries, with modular expansion

Filtration area, vessel size, operating pressure and discharge arrangement are configured to the feed and batch size; a pilot trial on the actual slurry is recommended before scaling.

Manufacturing Process

Slurry Charging

The slurry or process liquid containing the solids is charged into the closed filter vessel.

Pressure Filtration

Applied pressure forces the liquid through the filter medium on the perforated plate; the solids are retained and form a cake.

Filtrate Collection

The filtrate leaves through the filtrate outlet to the receiver.

Cake Washing (where required)

Where the process needs it, the cake is washed on the plate to displace remaining liquor.

Cake Discharge

The retained solids are discharged from the vessel for the next stage.

Clean-in-Place

The vessel is cleaned in place between batches.

Major Plant Equipment

Pressure Nutsche filter vessel with perforated filter plate
Filter medium
Filtrate outlet and receiver
Pressure supply connections and relief arrangements
Cake discharge arrangement
CIP (clean-in-place) connections
Instrumentation and PLC-based control panel

Plant Output

Filtrate (clarified process liquid)Retained solid cake

Applications

Pharmaceutical and nutraceutical process manufacturing
Botanical and herbal extraction industries
Food and flavour processing

Key Features

Enclosed Pressure Filtration
The closed vessel keeps filtration enclosed, with the cake collected on a perforated filter plate under applied pressure.
Pressure Rather Than Vacuum
The driving force is applied pressure, configured to the duty and the feed.
SS 316L Hygienic Construction
SS 316L (or process-appropriate grade) with electropolished product-contact surfaces and CIP between batches, with documentation to support GMP qualification.
Instrumented Control
PLC-based control with integrated instrumentation.
Turnkey Engineering
Design, fabrication, installation and commissioning are delivered as one accountable scope.
Scalable Capacity
Configured from pilot scale to commercial duty, with modular expansion.

Frequently Asked Questions

What is a pressure Nutsche filter and how does it work?

A pressure Nutsche filter is an enclosed vessel with a perforated filter plate. The slurry is charged to the vessel and applied pressure forces the liquid through the filter medium, so the solids collect as a cake on the plate while the filtrate passes to a receiver.

Does Mechotech supply the complete Pressure Nutsche Filter?

Yes. Mechotech engineers and fabricates the complete Pressure Nutsche Filter at its Hyderabad facility, then installs and commissions it as a single integrated system, with documentation to support GMP and regulatory qualification. Final parameters are established during process design and pilot validation.

How does a pressure Nutsche filter differ from a Nutsche filter or an Agitated Filter?

The Nutsche Filter is the general page for vacuum or pressure operation, and this page is the pressure-driven variant. The Agitated Filter adds an internal agitator to keep difficult slurries moving, and the Agitated Nutsche Filter Dryer combines filtration with drying in one vessel. The choice follows the slurry, the cake and the downstream step, and is made during process design.

When is a pressure Nutsche filter a good choice?

It suits enclosed, pressure-driven filtration of a slurry where a settled cake on a filter plate is acceptable. For large continuous volumes a Filter Press, and for fine polishing a Cartridge Filter, may be the better fit. A pilot trial on the actual slurry is recommended.

Can the cake be washed?

Where the process needs it, the cake can be washed on the plate to displace remaining liquor. Whether a wash step is included, and the wash medium and volume, are defined with the client during process design.

What pressure rating and capacity are available?

Mechotech builds the Pressure Nutsche Filter from pilot units to larger commercial installations. Filtration area, vessel size, pressure rating and ancillaries are configured to the confirmed batch size and feed; no fixed figures are quoted, and a pilot trial on the actual slurry is recommended before scaling.

What information is needed to specify a Pressure Nutsche Filter?

To configure the filter Mechotech needs the slurry composition, solids content and particle size, the liquid and its temperature, the operating pressure wanted, the cake volume and handling, any washing requirement and the hygiene and documentation requirements.

Which related filtration pages does Mechotech list?

See Nutsche Filter, Agitated Filter, Agitated Nutsche Filter Dryer, Filter Press, Bag Filter, Cartridge Filter and Sparkler Filter. The hub is Filtration Equipment Plants.
