Ambrette Seed
Ambrette Seed
Mechotech designs and manufactures turnkey seeds & berries extraction plants for Ambrette Seed (Abelmoschus moschatus). We supply the complete machinery to process Ambrette Seed into an extract configured to the client’s target specification for the pharmaceutical, nutraceutical, food, and fragrance industries.

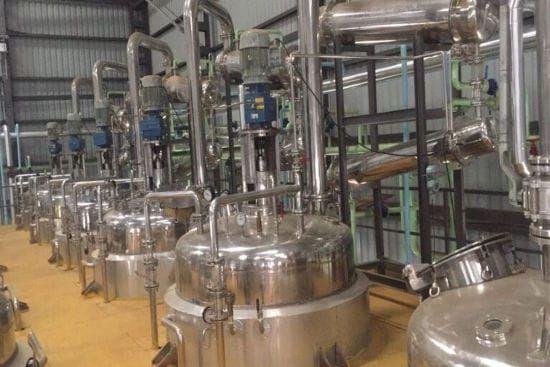

Mechotech's Ambrette Seed plant is configured around the specific chemistry and processing requirements of Ambrette Seed. Built in SS 316L with integrated solvent recovery, automation, and full documentation, each plant is delivered as a commissioned turnkey system.
Technical Specifications
| Product | Ambrette Seed Extraction Plant |
|---|---|
| Process Category | Seeds & Berries Extraction Plants |
| Botanical Name | Abelmoschus moschatus |
| Principal Documented Constituent | Ambrettolide |
| Extract Type | Standardised dry extract (powder) |
| Extraction Method | Food-grade solvent (alcohol / aqueous) extraction in closed, jacketed SS 316L extractors |
| Product-contact Material | SS 316L, electropolished, CIP-cleanable |
| Filtration System | Plate-and-frame filter press with cartridge polish filtration |
| Concentration System | Falling-film / vacuum evaporator with closed-loop solvent recovery |
| Drying System | Spray dryer or vacuum dryer |
| Utility Requirements | Steam, chilled/cooling water, vacuum, compressed air, soft water, power (project-specific) |
| Automation | PLC-based automation |
| Plant Capacity | Configured to requirement |
| Compliance | GMP hygienic design; full documentation for qualification |
| Final Product Form | Free-flowing standardised extract powder |
Plant Capacities
| Plant Scale | Raw Material Throughput | Typical Use |
|---|---|---|
| Pilot | Configured to your feedstock and trial plan | Product development, parameter validation |
| Semi-Commercial | Configured between pilot and commercial scale | Contract manufacturing, scale-up trials |
| Commercial | Configured to raw-material supply and confirmed buyer volume | Commercial production at confirmed buyer volume |
Capacity is configured to raw-material supply and confirmed buyer volume; we recommend a pilot plant to validate process parameters before scaling.
Manufacturing Process
Raw Material Preparation
Ambrette Seed raw material is authenticated, tested for moisture, and milled to a uniform particle size to maximise solvent contact before extraction.
Extraction
Milled Ambrette Seed is extracted with food-grade solvent (alcohol / aqueous) in closed jacketed SS 316L extractors under controlled temperature and multiple cycles to maximise recovery of the target actives.
Filtration
The extract (miscella) is clarified through a plate-and-frame filter press followed by cartridge polish filters.
Concentration & Solvent Recovery
The miscella is concentrated in a falling-film / vacuum evaporator, with solvent recovered through the condenser return system.
Standardisation
The concentrate is assayed and adjusted to the declared target specification before drying.
Drying & Quality Control
The standardised Ambrette Seed extract is spray- or vacuum-dried, then released after assay, residual-solvent, heavy-metal, microbial, and moisture testing.
Major Plant Equipment
- Raw material authentication, cleaning and moisture testing
- Mill (size reduction)
- Jacketed SS 316L extraction vessels
- Plate-and-frame filter press
- Cartridge polish filters
- Falling-film / vacuum evaporator
- Closed-loop solvent recovery system (condenser return)
- Spray dryer / vacuum dryer
- CIP (clean-in-place) system
- PLC-based automation panel
Plant Output
From Plant to Product
Ambrette Seed Extract
This botanical is also in the product range of Sureka Life Sciences, our sister concern in botanical ingredients.
Applications
- Fine perfumery and fragrance
- Fixative use
- Traditional and herbal preparations (as listed by Sureka Life Sciences)
Key Features
SS 316L Construction
Electropolished SS 316L product-contact surfaces with CIP operation between batches.
Closed-Loop Solvent Recovery
Integrated condenser-return recovery reuses solvent between batches and reduces solvent loss.
Standardised to Specification
In-process and batch-release assay are used to check the finished Ambrette Seed extract against its declared specification.
Integrated Drying
A matched spray/vacuum dryer produces a free-flowing, low-moisture powder ready for encapsulation and blending.
Scalable Batch Capacity
Plants are configured to requirement from pilot scale upward, with modular expansion.
Frequently Asked Questions
Does Mechotech supply the complete machinery for Ambrette Seed?
What specification can the Ambrette Seed plant achieve?
What production capacities are available for the Ambrette Seed plant?
Which industries use the Ambrette Seed plant?
How is Ambrette Seed extract produced in Mechotech's extraction plant?
How does this Ambrette Seed extraction plant differ from the Ambrette Seeds distillation plant?
What is Ambrette Seed and what is its botanical source?
Does Mechotech list other pages for the same raw material?
How does this page differ from Ambrette Seeds (distillation)?
