Cypress — Needles
Cypress — Needles
Mechotech designs and manufactures turnkey needles & twigs distillation plants for Cypress (Cupressus spp.). We supply the complete machinery to process Cypress (needles) into an essential oil configured to the client’s target specification. Cypress oil is distilled from the needles of Cupressus species and is listed in the catalogue for aromatherapy, cosmetics, perfumery and pharmaceutical use.

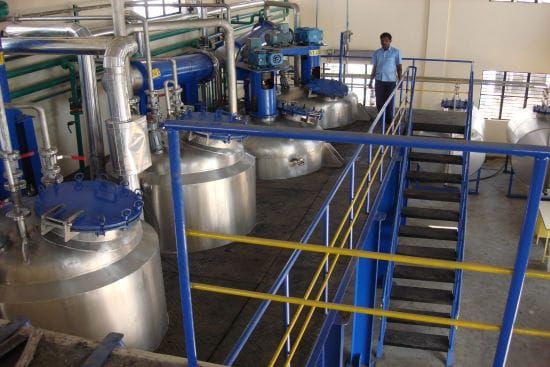

Mechotech’s Cypress distillation plant is configured around the raw material and the target oil. It is built in SS 316L with integrated condensers and oil–water separation, PLC-based automation and full documentation, and is delivered as a commissioned turnkey system. The distillation mode is selected during process development.
Technical Specifications
| Product | Cypress Distillation Plant |
|---|---|
| Botanical Name | Cupressus spp. |
| Raw Material | Cypress |
| Plant Part | Needles |
| Product Category | Needles & Twigs Distillation Plants |
| Extraction Method | Steam, hydro, vacuum or pressure distillation — selected for the volatility and heat-sensitivity of the target oil |
| Product-contact Material | SS 316L |
| Condensation | Multi-tube condenser with chilled-water circulation |
| Oil–Water Separation | Stainless-steel Florentine flask |
| Finishing | Polish filtration; drying over anhydrous sodium sulphate or by vacuum |
| Automation | PLC-based |
| Plant Capacity | Configured to requirement |
| Final Product Form | Cypress essential oil; aromatic hydrosol as co-product |
Plant Capacities
| Plant Scale | Raw Material Throughput | Typical Use |
|---|---|---|
| Pilot | Configured to your feedstock and trial plan | Product development, parameter validation |
| Semi-Commercial | Configured between pilot and commercial scale | Scale-up trials, contract manufacturing |
| Commercial | Configured to raw-material supply and confirmed buyer volume | Commercial production |
Capacity is configured to raw-material supply, confirmed buyer volume and investment timeline; a pilot plant is recommended to validate parameters before scaling.
Manufacturing Process
Raw Material Preparation
Cypress raw material is cleaned, sorted, and (where required) comminuted to the optimal particle size to maximise oil release during distillation.
Charging & Distillation
The prepared Cypress charge is loaded into the SS 316L still and distilled by steam, hydro (hydrodistillation), vacuum, or pressure distillation — selected for the volatility and heat-sensitivity of the target oil.
Condensation
Vapours pass through an efficient multi-tube condenser with chilled-water circulation, condensing the volatile oil and hydrosol.
Oil–Water Separation
Condensate is separated in a stainless-steel Florentine flask; the essential oil is collected while the hydrosol is drawn off (and can be recovered as a co-product).
Polishing & Drying
The crude oil is polish-filtered and dried over anhydrous sodium sulphate (or by vacuum) to remove residual moisture.
Quality Control
Each batch of Cypress oil is verified by GC-MS and physical parameters (specific gravity, refractive index, optical rotation) before release.
Major Plant Equipment
- Raw material cleaning and sorting system
- Size-reduction unit (where required)
- SS 316L distillation still / extractor
- Multi-tube condenser with chilled-water circulation
- Stainless-steel Florentine flask (oil–water separator)
- Polish filtration system
- Drying unit (anhydrous sodium sulphate or vacuum)
- CIP system
- PLC-based automation and instrumentation
Plant Output
Applications
- Aromatherapy
- Cosmetics
- Perfumery
- Pharmaceuticals
Key Features
SS 316L Construction
All product-contact surfaces are SS 316L for corrosion resistance and product purity, with CIP capability between batches.
Efficient Condensation
High-surface-area multi-tube condensers with chilled-water circulation condense the volatile oil and hydrosol.
Distillation Still / Extractor
The still (extractor) is configured for the distillation mode best suited to the feedstock, protecting heat-sensitive aroma compounds.
Hydrosol Recovery
Integrated separation allows the aromatic hydrosol to be recovered as a co-product.
Scalable Capacity
Plants are configured to requirement from pilot scale upward, with modular expansion.
Frequently Asked Questions
Does Mechotech supply the complete machinery for Cypress?
What specification can the Cypress plant achieve?
What production capacities are available for the Cypress plant?
Which part of Cypress is processed in the distillation plant?
How is Cypress oil produced in the plant?
Does Mechotech list other routes or related plants for Cypress?
Which related plants does the catalogue list with Cypress?
