Frankincense and Resin Extraction, Essential Oil Distillation and Date Dehydration Equipment for Oman
Mechotech engineers and builds frankincense and resin processing plants, essential oil distillation units and drying equipment at its Hyderabad, India works. Share your resin or fruit, target product and capacity and we will confirm the scope for your Oman project.
- Manufactured at our Hyderabad, India works
- SS 316L product-contact construction
- Frankincense oil, resinoid and boswellia routes listed
- Delivery and installation scope agreed per project
Three Equipment Areas for Oman Projects
Resins, aromatic oils and dates. Each section states what is listed and what needs review.
Frankincense & resin extraction
Frankincense distillation, resinoid and boswellia extraction plants.
See plantsEssential oil distillation
Distillation plants for floral, aromatic and resin oils.
See plantsDates & fruit dehydration
Date extract plants and dryers, with the date and fruit line scoped on enquiry.
See plants

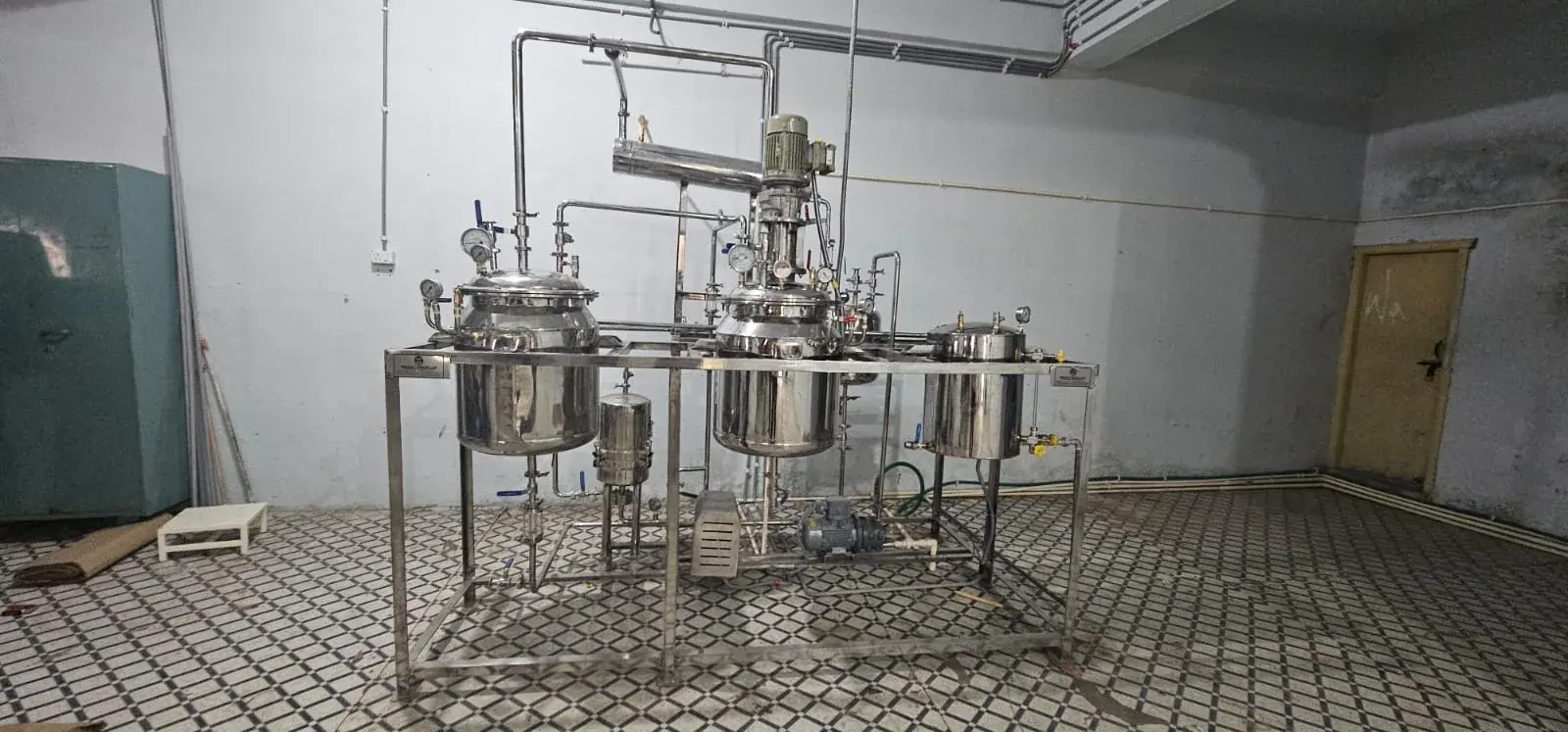

Frankincense and Resin Extraction Plants for Oman
Three distinct products come from frankincense, and each needs its own plant: an essential oil by steam or hydro distillation of the tears, a resinoid by solvent extraction, and a boswellic-acid extract from Boswellia serrata resin. Mechotech lists a plant page for each route, plus myrrh and benzoin resin plants.
Frankincense tears are sorted, cleaned and size-reduced before distillation, and the oil is separated in a Florentine flask with the hydrosol as a co-product. Tell us which product you want and the throughput.
- Frankincense oil by steam or hydro distillation
- Resinoid by solvent extraction
- Boswellia serrata boswellic-acid extract plant
Essential Oil Distillation Plants for Oman
Mechotech's essential oil extraction machines are steam, hydro, vacuum and pressure distillation plants with condensation, Florentine oil-water separation and hydrosol recovery. Plant families cover floral, leaf, spice, seed, root, wood and gum-resin raw materials.
Flowers and delicate aromatics often suit steam or vacuum distillation, while resins and woods may need hydro or pressure routes. Send your raw material, the oil you target and your throughput.
- Steam, hydro, vacuum and pressure distillation
- Floral and gum-resin plant families listed
- Hydrosol recovered as a co-product
Date and Fruit Dehydration Equipment for Oman
For dates, Mechotech lists a date pulp soluble fibre extraction plant and a date seed extraction plant. For fruit dehydration, it lists vacuum tray, fluidised-bed, vacuum paddle, freeze and spray dryers, and designs a line around the fruit, final moisture and capacity.
Date and fruit dehydration lines are not listed as standard products, and dates-specific equipment is scoped per project after review. Share your fruit, target form and capacity.
- Date pulp fibre and date seed extraction plants listed
- Five dryer types listed for the drying stage
- Date and fruit lines scoped per project
Scope note: We list spray, vacuum and other dryers, mainly for extracts, concentrates and process materials. A complete date or fruit dehydration line is scoped per project after engineering review.
Have a raw material and a target capacity? Get a technical proposal for Oman.
From Engineering Review to a Running Plant
Oman projects are handled directly by the manufacturer. Equipment is engineered and built at our Hyderabad, India works, and how delivery, installation and commissioning work for your site is agreed project by project in the technical proposal.
- 1
Engineering
Process route, equipment duties and utility needs worked out around your raw material and your site in Oman.
Process engineering - 2
Manufacturing
Built at our Hyderabad, India works with SS 316L process-contact parts and factory testing, with export-ready documentation.
Turnkey plant solutions - 3
Installation
Mechanical erection, piping and utility integration and instrumentation checks. How this is delivered for Oman is agreed in the proposal.
Installation & commissioning - 4
Commissioning
Trial runs, parameter stabilisation and handover documents: drawings, P&IDs and O&M manuals.
Validation & documentation
Equipment on this page for Oman projects
Technical Reading Behind These Equipment Areas
Process write-ups and guides for the equipment above, plus how a raw material is validated before you commit to a plant.
Process write-ups and guides
Validate before you scale
Our Botanical Process Development Centre, with Sureka Life Sciences, takes a raw material from lab feasibility through pilot trial and scale-up to plant engineering.
Process Development CentreEngineered in India for Oman Projects
Oman enquiries are handled by our engineering team at our global headquarters in Hyderabad, India, where the equipment is also manufactured.
Installation, commissioning and project-support scope for your site is defined project by project in the technical proposal.
You deal with the manufacturer
Engineering and fabrication happen at our Hyderabad, India works, so you work with the company that designs and builds the equipment.
Scope stated plainly
Each section says what Mechotech lists and what is scoped on enquiry, so you know where a proposal is firm and where engineering review comes first.
Validate before you scale
Raw-material feasibility and pilot trials are available through our Botanical Process Development Centre with Sureka Life Sciences.
Engineering heritage since 1997
Semi- and fully-automatic extraction, distillation, evaporation and drying equipment, built in SS 316L.
Questions About Plants for Oman
Which frankincense plants does Mechotech list?
A frankincense distillation plant for essential oil, a frankincense resinoid extraction plant and a Boswellia serrata extraction plant. They are separate plants, so choose by the product you want.
Do you supply frankincense tapping or grading equipment?
No. Tapping, collection and grading of raw resin are not part of our catalog. Our plants start from sorted, cleaned resin.
What do I need to send for a resin plant enquiry?
The resin and its form, the product you want (oil, resinoid or extract), the throughput, site utilities and location. Samples help us confirm the distillation mode.
How are plants supplied to Oman?
Plants are built at our Hyderabad, India works and supplied with export documentation. Shipping, installation and commissioning scope for your site is agreed in the proposal.
Ready to Scope Your Plant in Oman?
Send your resin, oil or fruit details and capacity. Our engineers will reply with a technical proposal.
Tell Us About Your Oman Project
Only name, email, phone and industry are required. The more you share about raw material and capacity, the more precise our proposal. We respond within 24 hours.
