Pine Sap
Pine Sap

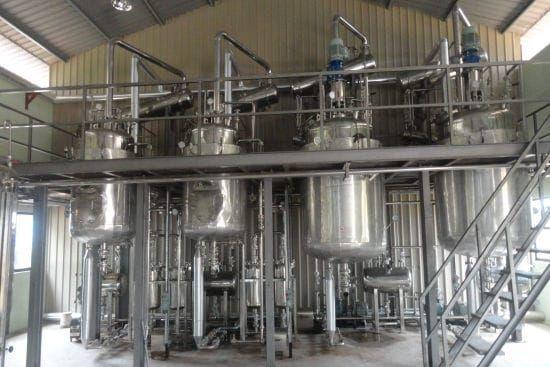

Mechotech designs and manufactures turnkey gums & resins distillation plants for Pine Sap. Mechotech’s legacy page text describes pine tree sap (oleoresin) and names pine oil, turpentine and rosin as the products of steam distillation or solvent extraction. The Sureka Life Sciences (SLS) catalogue has a Pine Sap Resin Distillation entry, but it gives Monotropa hypopitys as the botanical source, which the legacy page text does not describe, so no botanical name is stated on this page. This page covers the distillation route; the exact feed form, the species and the product forms are confirmed with the client.
Mechotech’s Pine Sap plant is configured around the raw material and the target oil. It is built in SS 316L with integrated condensers and oil–water separation, PLC-based automation and full documentation, and is delivered as a commissioned turnkey system. The distillation mode and operating parameters are established during process development and pilot validation.
Technical Specifications
| Product | Pine Sap Essential Oil Distillation Plant |
|---|---|
| Raw Material | Pine sap (oleoresin) |
| Plant Part / Feed Form | Sap / oleoresin, as listed under Gums & Resins Distillation Plants (exact form confirmed with the client) |
| Botanical Name | Not stated on this page: the legacy page text refers to pine tree sap without a species, and the Sureka Life Sciences entry names Monotropa hypopitys; the two are not reconciled and the species is confirmed with the client |
| Product Category | Gums & Resins Distillation Plants |
| Extraction Method | Steam, hydro, vacuum or pressure distillation — selected for the volatility and heat-sensitivity of the target oil |
| Product-contact Material | SS 316L |
| Condensation | Multi-tube condenser with chilled-water circulation |
| Oil–Water Separation | Stainless-steel Florentine flask |
| Finishing | Polish filtration; drying over anhydrous sodium sulphate or by vacuum |
| Automation | PLC-based |
| Plant Capacity | Configured to requirement |
| Utility Requirements | Steam, chilled/cooling water, compressed air and power (project-specific) |
| Compliance | GMP hygienic design; full documentation for qualification |
| Final Product Form | Pine sap essential oil; aromatic hydrosol as co-product |
Plant Capacities
| Plant Scale | Raw Material Throughput | Typical Use |
|---|---|---|
| Pilot | Configured to your feedstock and trial plan | Product development, parameter validation |
| Semi-Commercial | Configured between pilot and commercial scale | Scale-up trials, contract manufacturing |
| Commercial | Configured to raw-material supply and confirmed buyer volume | Commercial production |
Capacity is configured to raw-material supply, confirmed buyer volume and investment timeline; a pilot plant is recommended to validate parameters before scaling.
Manufacturing Process
Raw Material Preparation
Pine sap (oleoresin) is received, strained of bark, needles and foreign matter and conditioned into a chargeable form so that it can be loaded into the still; the feed form is confirmed with the client and set during process development.
Charging & Distillation
The prepared Pine Sap charge is loaded into the SS 316L still and distilled by steam, hydro, vacuum or pressure distillation, selected during process development for the volatility and heat-sensitivity of the target oil.
Condensation
Vapours pass through a multi-tube condenser with chilled-water circulation, condensing the oil and hydrosol.
Oil–Water Separation
Condensate is separated in a stainless-steel Florentine flask; the oil is collected and the hydrosol is drawn off and can be recovered as a co-product.
Polishing & Drying
The crude oil is polish-filtered and dried over anhydrous sodium sulphate or by vacuum to remove residual moisture.
Quality Control
Each batch is sampled for GC-MS profile and physical parameters — specific gravity, refractive index, optical rotation — against the client’s specification.
Major Plant Equipment
- Sap receiving, straining and conditioning system
- Perforated basket or false-bottom charge support
- SS 316L distillation still / extractor
- Multi-tube condenser with chilled-water circulation
- Stainless-steel Florentine flask (oil–water separator)
- Polish filtration system
- Drying unit (anhydrous sodium sulphate or vacuum)
- CIP system
- PLC-based automation and instrumentation
Plant Output
Applications
- Pharmaceutical applications (per the legacy listing)
- Perfumery (per the legacy listing)
- Cosmetics (per the legacy listing)
- Cleaning products (per the legacy listing)
- Industrial applications (per the legacy listing)
Key Features
SS 316L Construction
Product-contact surfaces are SS 316L for corrosion resistance and product purity, with CIP capability between batches.
Efficient Condensation
Multi-tube condensers with chilled-water circulation condense the volatile oil and hydrosol and limit loss of volatile top-notes.
Resin-Charge Distillation
The still is configured for sap or oleoresin charges, with the distillation mode set during process development.
Hydrosol Recovery
Integrated oil–water separation allows the aromatic hydrosol to be drawn off and recovered as a co-product.
Scalable Capacity
Plants are configured to requirement from pilot scale upward, with modular expansion.
Frequently Asked Questions
Does Mechotech supply the complete machinery for Pine Sap?
What specification can the Pine Sap plant achieve?
What production capacities are available for the Pine Sap plant?
Which part of Pine Sap is processed in the distillation plant?
How is Pine Sap oil produced in the plant?
Why does this page not state a botanical name or marker?
Which products does the legacy page text name for pine sap?
Is there another route for pine resin?
Which neighbouring plants does the product tree list with Pine sap?
