Protein Extraction Plants

Soy Meal Protein Extract

Extraction Technologies

Subcritical Water Extraction (SWE)Enzyme-Assisted Extraction (EAE)

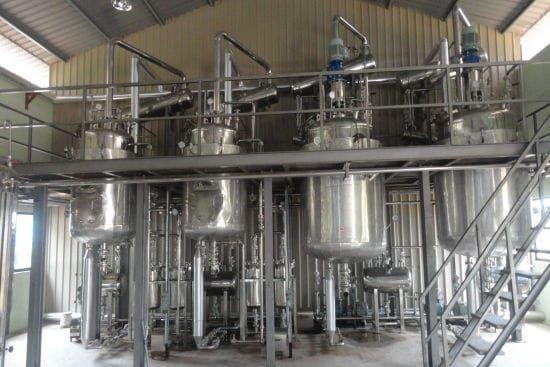

Mechotech designs and manufactures turnkey extraction plants that process soy meal to recover soy protein. We supply the machinery for the route selected after screening — raw-material preparation, extraction, separation, concentration or recovery, and drying or collection — configured to the target specification. Candidate extraction technologies for soy protein: Subcritical Water Extraction (SWE) and Enzyme-Assisted Extraction (EAE) (2 in total).

For soy meal with soy protein as the target, there are 2 candidate technologies: Subcritical Water Extraction (SWE) and Enzyme-Assisted Extraction (EAE). Polar, water-soluble-type targets point to water-based routes, with thermal-degradation, hydrolysis and drying behaviour checked during pilot work. These are screening candidates rather than guarantees: the final technology, operating parameters and plant configuration are established during process development and pilot validation. Product-contact parts are built in SS 316L with CIP-cleanable design, and automation is configured to the project.

Technical Specifications

Product	Soy Meal Protein Extract Plant
Feedstock	Soy meal
Part / Feed Form	Meal
Target Extract	Soy protein
Extraction Method	SWE, EAE
Technology Count	2
Product-contact Material	SS 316L, electropolished, CIP-cleanable
Automation	PLC-SCADA, configured to requirement

Plant Capacities

Plant Scale	Meal Throughput	Typical Use
Pilot	Configured to your feedstock and trial plan	Product development, parameter validation
Semi-Commercial	Configured to raw-material supply and buyer volume	Contract manufacturing, scale-up trials
Commercial	Configured to raw-material supply and confirmed buyer volume	Commercial production at confirmed buyer volume

Capacity is configured to raw-material supply and confirmed buyer volume; we recommend a pilot plant to validate process parameters before scaling. No fixed throughput is quoted for this product.

Manufacturing Process

Each extraction method follows a different process — pick a method to see its steps.

Raw-Material Preparation

Soy meal is cleaned and size-reduced so soy protein can be reached by the extraction medium; particle size and moisture are set during process development.

Vessel Loading & Pressurisation

Prepared soy meal and water are loaded into a pressure-rated extraction vessel.

Subcritical Water Extraction

Water held liquid under pressure at elevated temperature extracts soy protein without an organic solvent; temperature and residence time are set to limit thermal degradation and hydrolysis.

Separation

Spent solids are separated by filtration or centrifugation and the extract is clarified before concentration.

Concentration

The clarified aqueous extract is concentrated under vacuum or by membrane systems where required; no organic solvent is used in this route.

Recovery, Standardisation & Drying

The soy protein fraction is recovered from the concentrate by a route selected during process development and checked against the target specification; drying behaviour is verified because protein-type targets can be heat-sensitive.

Major Plant Equipment

Raw-material cleaning and size-reduction system
Pressure-rated hot-water extraction vessel
High-pressure water pump and heat exchangers
Jacketed enzyme reaction vessel with pH and temperature control
Enzyme dosing and inactivation system
Filtration / centrifugation system
Vacuum evaporator
Membrane concentration unit (where required)
Dryer (where a dried form is specified)
CIP (clean-in-place) system
Storage and finished-product tanks
PLC-SCADA control panel and instrumentation

Plant Output

Soy protein extract

Applications

Pharmaceutical standardised ingredient supply
Nutraceutical capsule, tablet, and supplement manufacturing
Food, flavour, and beverage applications
Cosmetic and personal care active ingredients
Ayurvedic and traditional medicine preparations
Export to regulated-market ingredient buyers

Key Features

Technology-Matched Process Design
The plant is configured around the 2 candidate technologies for this feedstock: Subcritical Water (SWE) and Enzyme-Assisted (EAE).
Target-Specific Configuration
Equipment and process steps are selected around the soy protein target and the soy meal feed form, and are finalised after pilot work.
Parameters Fixed After Pilot Trials
Recovery, selectivity, solvent or water duty, quality and cleaning are measured in pilot trials before final plant parameters are fixed.
SS 316L Hygienic Construction
Product-contact surfaces are SS 316L and CIP-cleanable, in a hygienic design suited to food, nutraceutical and pharmaceutical supply chains.
Configurable Automation
PLC-SCADA automation with recipe control can be configured to the project scope.

Frequently Asked Questions

What is a soy meal extraction plant for soy protein?

It is a turnkey Mechotech plant that processes soy meal to recover soy protein. The plant covers raw-material preparation, extraction, separation, concentration or fraction collection, and drying or packing, and is configured to the target specification. It sits within Mechotech's wider range of protein extraction plants.

Which plant part or feed form does the soy meal plant process?

The candidate feedstock is soy meal. The target extract is soy protein.

Does Mechotech supply the complete machinery for Soy Meal Protein Extract?

Yes. Mechotech supplies the complete turnkey plant for Soy Meal Protein Extract — engineered, fabricated at our Hyderabad facility, installed, and commissioned as a single integrated system.

Which industries use the Soy Meal Protein Extract plant?

Pharmaceutical, nutraceutical, food and flavour, cosmetic, and fragrance manufacturers use Mechotech plants for consistent, compliant production.

Which extraction technologies are suitable for soy meal?

This feedstock has 2 candidate technologies: Subcritical Water Extraction (SWE) and Enzyme-Assisted Extraction (EAE). See the related pages on subcritical water extraction and enzyme-assisted extraction. These are screening candidates, not guarantees of yield, purity or recovery; the route is confirmed through process development and pilot validation. In Mechotech's technology screening these candidates are ranked directionally — high-priority: Subcritical Water Extraction (rank 26 of 100), Enzyme-Assisted Extraction (rank 21 of 100). Ranks are directional screening priorities at method-family level, not measured yield, ROI or plant guarantees.

How does the soy meal extraction process work?

Each route follows the same outline: prepare soy meal, extract soy protein using the technology-specific step, separate and clarify the extract, concentrate it, and recover, standardise and dry. The process tabs above show the steps for each listed technology.

What equipment does the soy meal extraction plant include?

The equipment follows the selected route and includes raw-material cleaning and size-reduction system; pressure-rated hot-water extraction vessel; high-pressure water pump and heat exchangers; jacketed enzyme reaction vessel with pH and temperature control; enzyme dosing and inactivation system; filtration / centrifugation system; vacuum evaporator; membrane concentration unit (where required). The full list is shown under Major Plant Equipment.

Which related Mechotech extraction pages cover the same material or target?

Soy flavonoid extracts are covered on the Soya and Soybean Extract Powder pages, and soybean oil on the Soybean Oil page.

What capacity is available and is a pilot trial recommended?

Capacity is configured to requirement. Mechotech's technology screening recommends starting with small-scale feed trials to measure recovery, selectivity, solvent or water duty, quality and cleaning before pilot and commercial plant sizes are fixed.
