Boronia
Boronia
Mechotech designs and manufactures turnkey flower & buds oils distillation plants for Boronia. We supply the complete machinery to process Boronia into an essential oil configured to the client’s target specification for fragrance, aromatherapy, flavour, cosmetic and related ingredient applications. Boronia oil is obtained from Boronia megastigma flowers, petals and buds and is used in perfumery, cosmetics and aromatherapy for its intense floral aroma with fruity undertones.

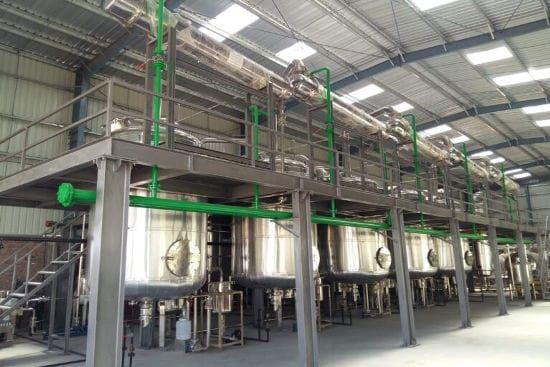

Mechotech’s Boronia distillation plant is configured around the raw material and the target oil. It is built in SS 316L with integrated condensers and oil–water separation, PLC-based automation and full documentation, and is delivered as a commissioned turnkey system. The distillation mode is selected during process development. Boronia flowers carry a delicate floral aroma that the catalogue describes as intense with fruity undertones, so the line is built around gentle handling of the flowers, a loosely charged still and careful condensation to protect the aroma. Distillation gives the oil route; the solvent route to a concrete and absolute is covered on the Boronia Absolute page.
Technical Specifications
| Product | Boronia Distillation Plant |
|---|---|
| Botanical Name | Boronia megastigma |
| Raw Material | Boronia |
| Plant Part | Flowers / petals / buds |
| Product Category | Flower & Buds Oils Distillation Plants |
| Extraction Method | Steam, hydro, vacuum or pressure distillation — selected for the volatility and heat-sensitivity of the target oil |
| Product-contact Material | SS 316L |
| Condensation | Multi-tube condenser with chilled-water circulation |
| Oil–Water Separation | Stainless-steel Florentine flask |
| Finishing | Polish filtration; drying over anhydrous sodium sulphate or by vacuum |
| Automation | PLC-based |
| Plant Capacity | Configured to requirement |
| Final Product Form | Boronia essential oil; aromatic hydrosol as co-product |
Plant Capacities
| Plant Scale | Raw Material Throughput | Typical Use |
|---|---|---|
| Pilot | Configured to your feedstock and trial plan | Product development, parameter validation |
| Semi-Commercial | Configured between pilot and commercial scale | Scale-up trials, contract manufacturing |
| Commercial | Configured to raw-material supply and confirmed buyer volume | Commercial production |
Capacity is configured to raw-material supply, confirmed buyer volume and investment timeline; a pilot plant is recommended to validate parameters before scaling.
Manufacturing Process
Raw Material Preparation
Boronia flowers, petals and buds are cleaned and charged loosely and gently so that the delicate aroma compounds are not crushed or overheated; the harvest-to-still time and charge density are set during process development.
Charging & Distillation
The prepared Boronia charge is loaded into the SS 316L still and distilled by steam, hydro (hydrodistillation), vacuum, or pressure distillation — selected for the volatility and heat-sensitivity of the target oil.
Condensation
Vapours pass through an efficient multi-tube condenser with chilled-water circulation, condensing the volatile oil and hydrosol.
Oil–Water Separation
Condensate is separated in a stainless-steel Florentine flask; the essential oil is collected while the hydrosol is drawn off (and can be recovered as a co-product).
Polishing & Drying
The crude oil is polish-filtered and dried over anhydrous sodium sulphate (or by vacuum) to remove residual moisture.
Quality Control
Each batch of Boronia oil is verified by GC-MS and physical parameters (specific gravity, refractive index, optical rotation) before release.
Major Plant Equipment
- Raw material cleaning and sorting system
- Size-reduction unit (where required)
- SS 316L distillation still / extractor
- Multi-tube condenser with chilled-water circulation
- Stainless-steel Florentine flask (oil–water separator)
- Polish filtration system
- Drying unit (anhydrous sodium sulphate or vacuum)
- CIP system
- PLC-based automation and instrumentation
Plant Output
Applications
- Perfumery
- Cosmetics
- Aromatherapy
- Skin care
- Flavouring
Key Features
SS 316L Construction
All product-contact surfaces are SS 316L for corrosion resistance and product purity, with CIP capability between batches.
Efficient Condensation
High-surface-area multi-tube condensers with chilled-water circulation condense the volatile oil and hydrosol.
Delicate-Flower Distillation
The still is configured for a loose, gently handled flower charge, with the distillation mode chosen to protect the heat-sensitive floral aroma.
Hydrosol Recovery
Integrated separation allows the aromatic hydrosol to be recovered as a co-product.
Scalable Capacity
Plants are configured to requirement from pilot scale upward, with modular expansion.
