Cypriol
Cypriol
Mechotech designs and manufactures turnkey roots / husk distillation plants for Cypriol. We supply the complete machinery to process Cypriol into an essential oil configured to the client’s target specification.

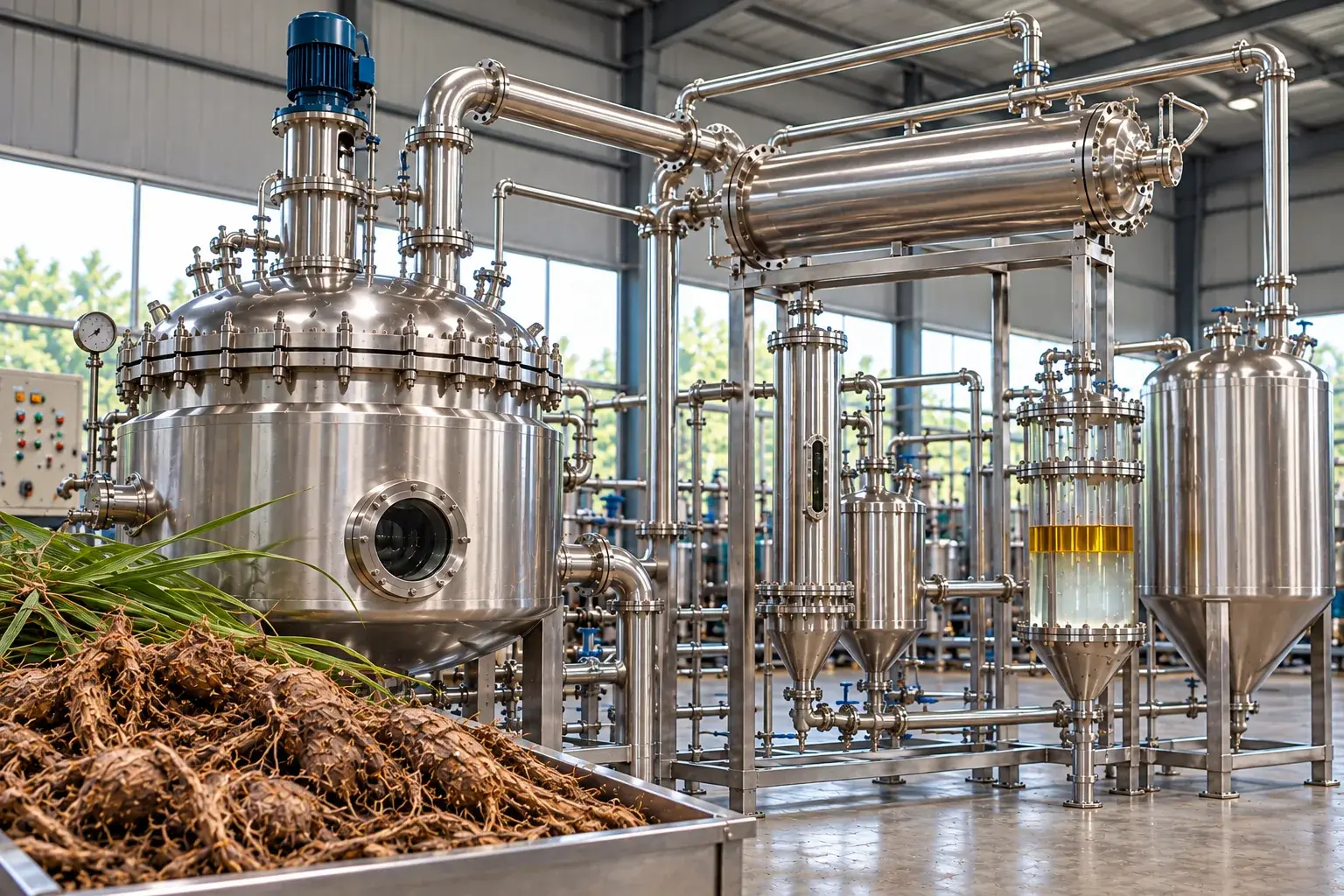

Mechotech’s Cypriol distillation plant is configured around the raw material and the target oil. It is built in SS 316L with integrated condensers and oil–water separation, PLC-based automation and full documentation, and is delivered as a commissioned turnkey system. The distillation mode is selected during process development. Cypriol is a root-and-husk feedstock, so the line is built around cleaning off soil and reducing the dense, fibrous material before distillation. The catalogue marker compound is cyperene, and the oil is listed for perfumery, aromatherapy, skin care and traditional medicine.
Technical Specifications
| Product | Cypriol Distillation Plant |
|---|---|
| Raw Material | Cypriol |
| Botanical Name | Cyperus scariosus (per the Sureka Life Sciences catalogue entry for Cypriol Distillation) |
| Plant Part / Feed Form | Roots / husk (per the Roots / Husk Distillation Plants category); exact feed form to be confirmed with the client |
| Marker Compound | Cyperene (per the Sureka Life Sciences catalogue entry) |
| Product Category | Roots / Husk Distillation Plants |
| Extraction Method | Steam, hydro, vacuum or pressure distillation — selected for the volatility and heat-sensitivity of the target oil |
| Product-contact Material | SS 316L |
| Condensation | Multi-tube condenser with chilled-water circulation |
| Oil–Water Separation | Stainless-steel Florentine flask |
| Finishing | Polish filtration; drying over anhydrous sodium sulphate or by vacuum |
| Automation | PLC-based |
| Plant Capacity | Configured to requirement |
| Final Product Form | Cypriol essential oil; aromatic hydrosol as co-product |
Plant Capacities
| Plant Scale | Raw Material Throughput | Typical Use |
|---|---|---|
| Pilot | Configured to your feedstock and trial plan | Product development, parameter validation |
| Semi-Commercial | Configured between pilot and commercial scale | Scale-up trials, contract manufacturing |
| Commercial | Configured to raw-material supply and confirmed buyer volume | Commercial production |
Capacity is configured to raw-material supply, confirmed buyer volume and investment timeline; a pilot plant is recommended to validate parameters before scaling.
Manufacturing Process
Raw Material Preparation
Cypriol root / husk material is cleaned of soil and dust and reduced in size so that steam reaches the oil-bearing tissue; the exact plant part, feed form and particle size are confirmed with the client and set during process development.
Charging & Distillation
The prepared Cypriol charge is loaded into the SS 316L still and distilled by steam, hydro (hydrodistillation), vacuum, or pressure distillation — selected for the volatility and heat-sensitivity of the target oil.
Condensation
Vapours pass through an efficient multi-tube condenser with chilled-water circulation, condensing the volatile oil and hydrosol.
Oil–Water Separation
Condensate is separated in a stainless-steel Florentine flask; the essential oil is collected while the hydrosol is drawn off (and can be recovered as a co-product).
Polishing & Drying
The crude oil is polish-filtered and dried over anhydrous sodium sulphate (or by vacuum) to remove residual moisture.
Quality Control
Each batch of Cypriol oil is verified by GC-MS and physical parameters (specific gravity, refractive index, optical rotation) before release.
Major Plant Equipment
- Raw material cleaning and sorting system
- Size-reduction unit (where required)
- SS 316L distillation still / extractor
- Multi-tube condenser with chilled-water circulation
- Stainless-steel Florentine flask (oil–water separator)
- Polish filtration system
- Drying unit (anhydrous sodium sulphate or vacuum)
- CIP system
- PLC-based automation and instrumentation
Plant Output
From Plant to Product
Cypriol Distillation
This botanical is also in the product range of Sureka Life Sciences, our sister concern in botanical ingredients.
Applications
- Perfumery
- Aromatherapy
- Skin-care products
- Traditional medicine preparations
Key Features
SS 316L Construction
All product-contact surfaces are SS 316L for corrosion resistance and product purity, with CIP capability between batches.
Efficient Condensation
High-surface-area multi-tube condensers with chilled-water circulation condense the volatile oil and hydrosol.
Root-and-Husk Distillation
The still is configured for dense, size-reduced root and husk charges, with the distillation mode set during process development.
Hydrosol Recovery
Integrated separation allows the aromatic hydrosol to be recovered as a co-product.
Scalable Capacity
Plants are configured to requirement from pilot scale upward, with modular expansion.
Frequently Asked Questions
Does Mechotech supply the complete machinery for Cypriol?
What specification can the Cypriol plant achieve?
What production capacities are available for the Cypriol plant?
Which industries use the Cypriol plant?
Which part of Cypriol is processed in the distillation plant?
How is Cypriol oil produced in the plant?
How does Cypriol differ from NagarMotha?
What is cypriol oil and what is it used for?
