Jatamansi Green
Jatamansi Green
Mechotech designs and manufactures turnkey roots / husk distillation plants for Jatamansi Green (Nardostachys jatamansi). We supply the complete machinery to process Jatamansi Green into an essential oil configured to the client’s target specification. The Sureka Life Sciences catalogue lists Jatamansi Green Distillation as a separate entry from Jatamansi Brown Distillation, with jatamansone as the marker and aromatherapy, perfumery, traditional-medicine and skincare uses.

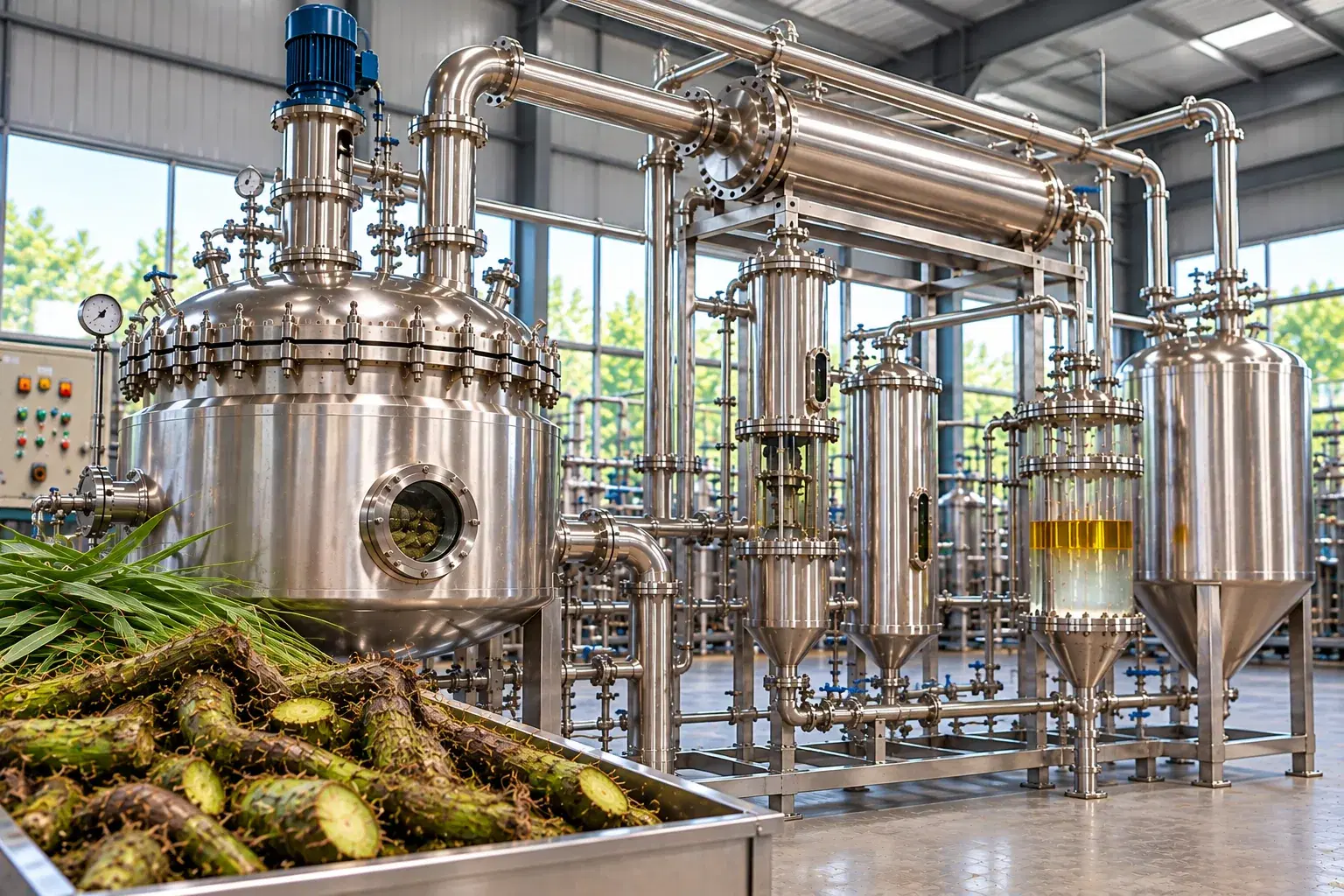

Mechotech’s Jatamansi Green distillation plant is configured around the raw material and the target oil. It is built in SS 316L with integrated condensers and oil–water separation, PLC-based automation and full documentation, and is delivered as a commissioned turnkey system. The distillation mode is selected during process development. Jatamansi is a root / rhizome feedstock, so the line is built around cleaning off soil and reducing the dense, fibrous roots before distillation; jatamansone is the listed marker compound.
Technical Specifications
| Product | Jatamansi Green Distillation Plant |
|---|---|
| Catalogue Entry | Jatamansi Green (listed separately from Jatamansi Brown; the basis of the distinction is confirmed with the client) |
| Botanical Name | Nardostachys jatamansi |
| Raw Material | Jatamansi Green |
| Plant Part | Roots / rhizomes — the legacy distillation listing says roots and the legacy herbal-extraction listing describes aromatic rhizomes; exact feed form to be confirmed with the client |
| Marker Compound | Jatamansone (per the Sureka Life Sciences catalogue entry for Jatamansi Green Distillation) |
| Product Category | Roots / Husk Distillation Plants |
| Extraction Method | Steam or hydro distillation (per the legacy Jatamansi / Spikenard root listing); vacuum or pressure modes can be evaluated and the final route is confirmed during process development |
| Product-contact Material | SS 316L |
| Condensation | Multi-tube condenser with chilled-water circulation |
| Oil–Water Separation | Stainless-steel Florentine flask |
| Finishing | Polish filtration; drying over anhydrous sodium sulphate or by vacuum |
| Automation | PLC-based |
| Plant Capacity | Configured to requirement |
| Final Product Form | Jatamansi Green essential oil; aromatic hydrosol as co-product |
Plant Capacities
| Plant Scale | Raw Material Throughput | Typical Use |
|---|---|---|
| Pilot | Configured to your feedstock and trial plan | Product development, parameter validation |
| Semi-Commercial | Configured between pilot and commercial scale | Scale-up trials, contract manufacturing |
| Commercial | Configured to raw-material supply and confirmed buyer volume | Commercial production |
Capacity is configured to raw-material supply, confirmed buyer volume and investment timeline; a pilot plant is recommended to validate parameters before scaling.
Manufacturing Process
Raw Material Preparation
Jatamansi Green roots / rhizomes are cleaned of soil and reduced in size so that steam reaches the oil-bearing tissue; the feed form and particle size are set during process development.
Charging & Distillation
The prepared Jatamansi Green charge is loaded into the SS 316L still and distilled by steam, hydro (hydrodistillation), vacuum, or pressure distillation — selected for the volatility and heat-sensitivity of the target oil.
Condensation
Vapours pass through an efficient multi-tube condenser with chilled-water circulation, condensing the volatile oil and hydrosol.
Oil–Water Separation
Condensate is separated in a stainless-steel Florentine flask; the essential oil is collected while the hydrosol is drawn off (and can be recovered as a co-product).
Polishing & Drying
The crude oil is polish-filtered and dried over anhydrous sodium sulphate (or by vacuum) to remove residual moisture.
Quality Control
Each batch of Jatamansi Green oil is verified by GC-MS and physical parameters (specific gravity, refractive index, optical rotation) before release.
Major Plant Equipment
- Raw material cleaning and sorting system
- Size-reduction unit (where required)
- SS 316L distillation still / extractor
- Multi-tube condenser with chilled-water circulation
- Stainless-steel Florentine flask (oil–water separator)
- Polish filtration system
- Drying unit (anhydrous sodium sulphate or vacuum)
- CIP system
- PLC-based automation and instrumentation
Plant Output
Applications
- Aromatherapy
- Perfumery
- Traditional medicine, including Ayurvedic preparations
- Skincare
Key Features
SS 316L Construction
All product-contact surfaces are SS 316L for corrosion resistance and product purity, with CIP capability between batches.
Efficient Condensation
High-surface-area multi-tube condensers with chilled-water circulation condense the volatile oil and hydrosol.
Root-Charge Distillation
The still is configured for dense, fibrous, size-reduced root and rhizome charges, with the distillation mode set during process development.
Hydrosol Recovery
Integrated separation allows the aromatic hydrosol to be recovered as a co-product.
Scalable Capacity
Plants are configured to requirement from pilot scale upward, with modular expansion.
