Mechotech designs and manufactures turnkey wood / bark distillation plants for Cade / Juniper. We supply the complete machinery to process Cade / Juniper into an essential oil configured to the client’s target specification for fragrance, aromatherapy, flavour, cosmetic and related ingredient applications. Cade oil is obtained from Juniperus oxycedrus wood and is used in cosmetics, traditional medicine, veterinary care and industrial applications, valued for its antiseptic, antifungal and skin-healing properties.

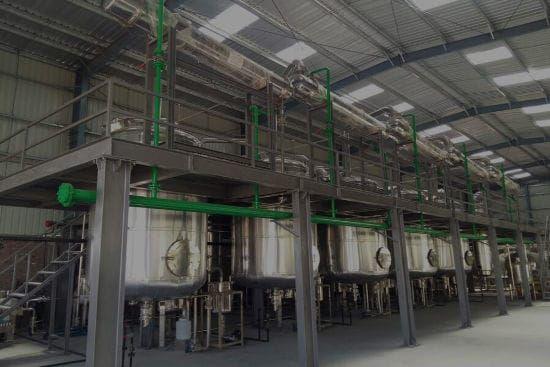

Mechotech’s Cade / Juniper distillation plant is configured around the raw material and the target oil. It is built in SS 316L with integrated condensers and oil–water separation, PLC-based automation and full documentation, and is delivered as a commissioned turnkey system. The distillation mode is selected during process development.
Technical Specifications
| Product | Cade / Juniper Distillation Plant |
|---|---|
| Botanical Name | Juniperus oxycedrus L. |
| Raw Material | Cade / Juniper |
| Plant Part | Wood |
| Marker Compound | Guaiacol (per the Sureka Life Sciences catalogue entry for Cade Distillation) |
| Product Category | Wood / Bark Distillation Plants |
| Extraction Method | Dry distillation of Juniperus oxycedrus wood (catalogue listing); final route confirmed during process development |
| Product-contact Material | SS 316L |
| Condensation | Multi-tube condenser with chilled-water circulation |
| Oil–Water Separation | Stainless-steel Florentine flask |
| Finishing | Polish filtration; drying over anhydrous sodium sulphate or by vacuum |
| Automation | PLC-based |
| Plant Capacity | Configured to requirement |
| Final Product Form | Cade / Juniper essential oil; aromatic hydrosol as co-product |
Plant Capacities
| Plant Scale | Raw Material Throughput | Typical Use |
|---|---|---|
| Pilot | Configured to your feedstock and trial plan | Product development, parameter validation |
| Semi-Commercial | Configured between pilot and commercial scale | Scale-up trials, contract manufacturing |
| Commercial | Configured to raw-material supply and confirmed buyer volume | Commercial production |
Capacity is configured to raw-material supply, confirmed buyer volume and investment timeline; a pilot plant is recommended to validate parameters before scaling.
Manufacturing Process
Raw Material Preparation
Cade / Juniper raw material is cleaned, sorted, and (where required) comminuted to the optimal particle size to maximise oil release during distillation.
Charging & Distillation
The prepared Cade / Juniper charge is loaded into the SS 316L still and distilled by steam, hydro (hydrodistillation), vacuum, or pressure distillation — selected for the volatility and heat-sensitivity of the target oil.
Condensation
Vapours pass through an efficient multi-tube condenser with chilled-water circulation, condensing the volatile oil and hydrosol.
Oil–Water Separation
Condensate is separated in a stainless-steel Florentine flask; the essential oil is collected while the hydrosol is drawn off (and can be recovered as a co-product).
Polishing & Drying
The crude oil is polish-filtered and dried over anhydrous sodium sulphate (or by vacuum) to remove residual moisture.
Quality Control
Each batch of Cade / Juniper oil is verified by GC-MS and physical parameters (specific gravity, refractive index, optical rotation) before release.
Major Plant Equipment
- Raw material cleaning and sorting system
- Size-reduction unit (where required)
- SS 316L distillation still / extractor
- Multi-tube condenser with chilled-water circulation
- Stainless-steel Florentine flask (oil–water separator)
- Polish filtration system
- Drying unit (anhydrous sodium sulphate or vacuum)
- CIP system
- PLC-based automation and instrumentation
Plant Output
From Plant to Product
Cade Distillation
This botanical is also in the product range of Sureka Life Sciences, our sister concern in botanical ingredients.
Applications
- Skin, scalp and hair-care formulations
- Dermatological aids
- Veterinary care and anti-parasitic / pest-control products
- Traditional medicine preparations
- Aromatherapy and fragrance
- Industrial applications
Key Features
SS 316L Construction
All product-contact surfaces are SS 316L for corrosion resistance and product purity, with CIP capability between batches.
Efficient Condensation
High-surface-area multi-tube condensers with chilled-water circulation condense the volatile oil and hydrosol.
Distillation Still / Extractor
The still (extractor) is configured for the distillation mode best suited to the feedstock, protecting heat-sensitive aroma compounds.
Hydrosol Recovery
Integrated separation allows the aromatic hydrosol to be recovered as a co-product.
Scalable Capacity
Plants are configured to requirement from pilot scale upward, with modular expansion.
