CO2 Extraction Plants

Long Pepper Piperine Oleoresin (CO₂)

Extraction Technologies

Supercritical CO₂ Extraction (SCFE)

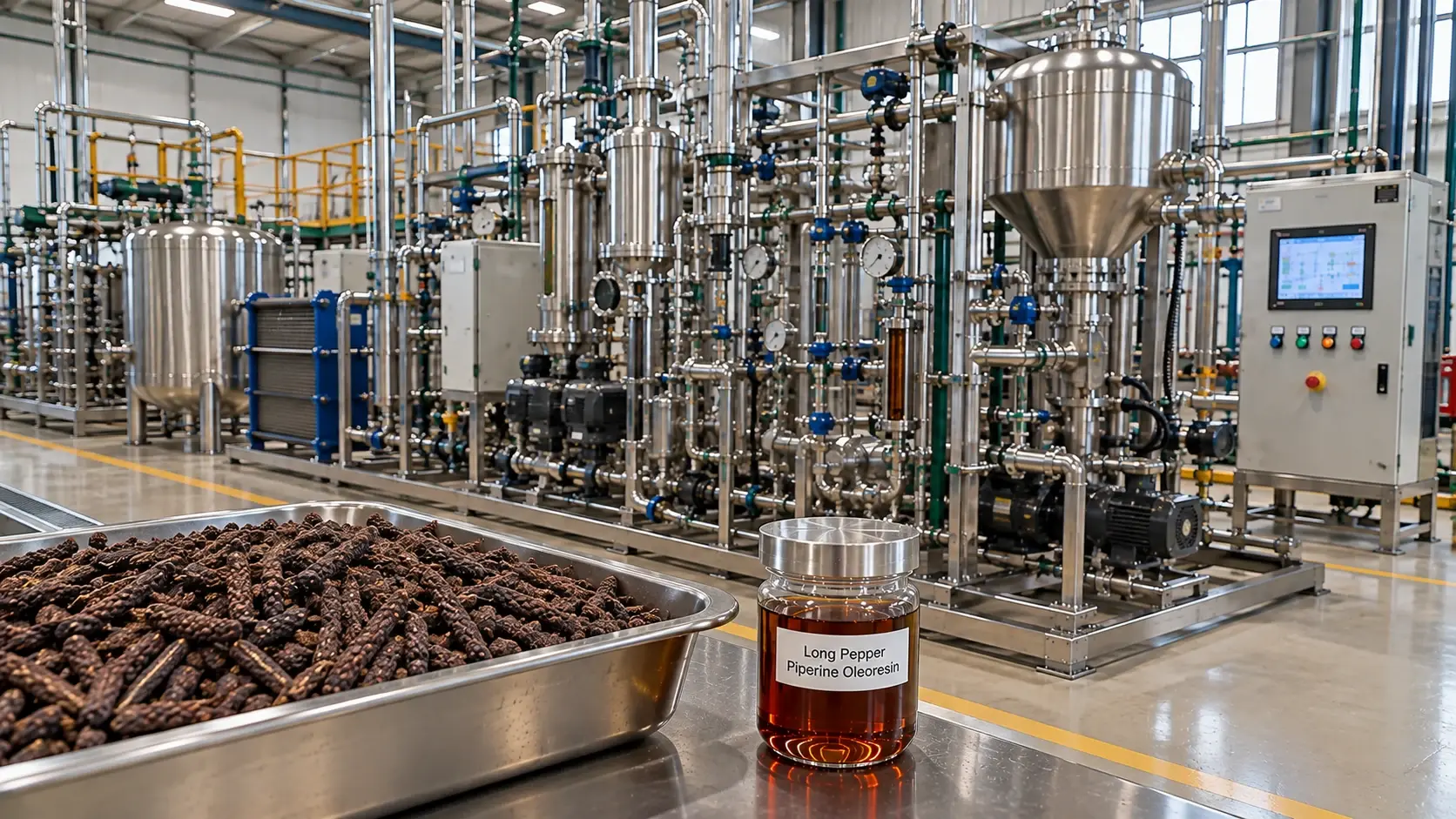

Mechotech designs and manufactures turnkey extraction plants that process long pepper fruit to recover piperine oleoresin. We supply the machinery for the route selected after screening — raw-material preparation, extraction, separation, concentration or recovery, and drying or collection — configured to the target specification. Mechotech's technology screening identifies one candidate route for this feedstock: Supercritical CO₂ Extraction (SCFE) (exploratory screening, rank 75 of 100 in that technology's screening).

For long pepper fruit with piperine oleoresin as the target, there is one candidate technology: Supercritical CO₂ Extraction (SCFE). By route — Supercritical CO₂ (SCFE): exploratory screening, rank 75 of 100, CO₂; optional ethanol modifier. For the best-ranked route, Supercritical CO₂ (SCFE), the screening flags: nonpolar fraction preferred; polar targets may need modifier and separate validation. These are screening candidates rather than guarantees: the final technology, operating parameters and plant configuration are established during process development and pilot validation. Product-contact parts are built in SS 316L with CIP-cleanable design, and automation is configured to the project.

Technical Specifications

Product	Long Pepper Piperine Oleoresin (CO₂) Extraction Plant
Feedstock	Long pepper fruit
Part / Feed Form	Fruit
Target Extract	Piperine oleoresin
Extraction Method	CO2
Technology Count	1
Product-contact Material	SS 316L, electropolished, CIP-cleanable
Automation	PLC-SCADA, configured to requirement

Plant Capacities

Plant Scale	Fruit Throughput	Typical Use
Pilot	Configured to your feedstock and trial plan	Product development, parameter validation
Semi-Commercial	Configured to raw-material supply and buyer volume	Contract manufacturing, scale-up trials
Commercial	Configured to raw-material supply and confirmed buyer volume	Commercial production at confirmed buyer volume

Capacity is configured to raw-material supply and confirmed buyer volume; we recommend a pilot plant to validate process parameters before scaling. No fixed throughput is quoted for this product.

Manufacturing Process

Each extraction method follows a different process — pick a method to see its steps.

Raw-Material Conditioning

Long pepper fruit is cleaned and conditioned so piperine oleoresin is accessible to supercritical CO₂; moisture and particle size are set during process development.

Extraction Vessel Loading

Conditioned long pepper fruit is charged into the high-pressure extraction vessel.

Supercritical CO₂ Extraction

Supercritical CO₂ passes through the charge and dissolves piperine oleoresin; an ethanol modifier can be evaluated where polar fractions are also required, and operating pressure and temperature are set in process development.

Separator Collection

Pressure is reduced in separator stages so the extracted piperine oleoresin drops out of the CO₂ and is collected.

CO₂ Recycle

Gaseous CO₂ is re-liquefied and recirculated to the extractor, limiting make-up gas demand.

Finishing & Packing

The collected piperine oleoresin is polished by filtration as needed and packed to the required specification.

Major Plant Equipment

Raw-material cleaning and size-reduction system
Supercritical CO₂ extraction vessels
CO₂ pump, heat exchangers and chiller
Separator vessels
CO₂ recovery / recycle system
Optional ethanol-modifier dosing skid
Product collection vessels and polish filtration
CIP (clean-in-place) system
Storage and finished-product tanks
PLC-SCADA control panel and instrumentation

Plant Output

Piperine oleoresin extract

Applications

Nutraceutical Capsules
Herbal Tablets
Pharmaceutical Formulations
Bioavailability Enhancers
Functional Foods
Sports Nutrition
Veterinary Products

Key Features

Supercritical CO₂ (SCFE) — Exploratory Screening Fit
Best-ranked route for long pepper fruit: rank 75 of 100 in Mechotech's supercritical CO₂ extraction screening, using CO₂; optional ethanol modifier. Ranks are directional screening priorities, not measured yield, ROI or plant guarantees.
Long pepper fruit — Single Candidate Route
Routes screened for long pepper fruit: Supercritical CO₂ (SCFE) — exploratory, rank 75. The process tab above shows the steps for this route.
Fruit Feed Form
The candidate routes are defined for long pepper fruit; feedstock assay and moisture are measured as pilot inputs and the feed form is set during process development.
Parameters Fixed After Pilot Trials
Recovery of piperine oleoresin, selectivity, solvent or water duty, quality and cleaning are measured in pilot trials, starting with small-scale feed trials, before final plant parameters are fixed.
SS 316L Hygienic Construction
Product-contact surfaces are SS 316L and CIP-cleanable, in a hygienic design suited to food, nutraceutical and pharmaceutical supply chains; PLC-SCADA automation with recipe control can be configured to the project scope.

Frequently Asked Questions

What is a long pepper fruit extraction plant for piperine oleoresin?

It is a turnkey Mechotech plant that processes long pepper fruit to recover piperine oleoresin. The plant covers raw-material preparation, extraction, separation, concentration or fraction collection, and drying or packing, and is configured to the target specification. It sits within Mechotech's wider range of CO₂ extraction plants.

Which plant part or feed form does the long pepper fruit plant process?

The candidate feedstock is long pepper fruit. The target extract is piperine oleoresin.

Which extraction technology is suitable for long pepper fruit?

The candidate technology for this feedstock is Supercritical CO₂ Extraction (SCFE) (exploratory screening). See the related pages on supercritical CO₂ extraction. These are screening candidates, not guarantees of yield, purity or recovery; the route is confirmed through process development and pilot validation. In Mechotech's technology screening, Supercritical CO₂ Extraction (rank 75 of 100) is ranked directionally as an exploratory candidate. Ranks are directional screening priorities at method-family level, not measured yield, ROI or plant guarantees.

How does Mechotech's screening rank the candidate route for long pepper fruit?

Each technology list in Mechotech's screening ranks 100 feedstock–target opportunities (1 = highest priority). For long pepper fruit: Supercritical CO₂ (SCFE) rank 75 (exploratory). Ranks are directional screening priorities, not measured yield, ROI or plant guarantees, and the evidence is at method-family level, so every route needs pilot validation.

How does the long pepper fruit extraction process work?

Each listed route has its own steps — Supercritical CO₂ (SCFE): Extraction Vessel Loading → Supercritical CO₂ Extraction → Separator Collection. All routes share the same outline: prepare long pepper fruit, extract piperine oleoresin using the technology-specific step, separate and clarify the extract, concentrate it, and recover, standardise and dry. The process tabs above show every step.

What equipment does the long pepper fruit extraction plant include?

The equipment follows the selected route and includes raw-material cleaning and size-reduction system; supercritical CO₂ extraction vessels; CO₂ pump, heat exchangers and chiller; separator vessels; CO₂ recovery / recycle system; optional ethanol-modifier dosing skid; product collection vessels and polish filtration; CIP (clean-in-place) system. The full list is shown under Major Plant Equipment.

Why is supercritical CO₂ a candidate technology for piperine oleoresin?

Supercritical CO₂ is generally suited to non-polar fractions such as oils and waxes, which is why it is a candidate technology for piperine oleoresin. Where polar fractions are also needed, an ethanol modifier can be evaluated and validated separately.

What output and specification can the long pepper fruit plant deliver?

The listed output is piperine oleoresin extract. The plant is configured to a customer-declared specification for piperine oleoresin. No fixed purity, grade or yield is claimed until pilot results are available.

What application areas are listed for Long Pepper Piperine Oleoresin (CO₂)?

The application areas listed on this page are: Nutraceutical Capsules; Herbal Tablets; Pharmaceutical Formulations; Bioavailability Enhancers; Functional Foods; Sports Nutrition; Veterinary Products.

Which related Mechotech extraction pages cover the same material or target?

Other pepper-family and spice CO₂ pages include Black Pepper Oil (CO₂), Cubeb Berry Oil (CO₂) and Chilli Fruit Capsaicinoids (CO₂). Piperine extracts are covered on the Black Pepper Extract page.

What capacity is available and is a pilot trial recommended?

Capacity is configured to requirement. Mechotech's technology screening recommends starting with small-scale feed trials to measure recovery, selectivity, solvent or water duty, quality and cleaning before pilot and commercial plant sizes are fixed.
