Leaves Oils Distillation Plants

Eucalyptus Citriodora

Mechotech designs and manufactures turnkey leaves oils distillation plants for Eucalyptus citriodora. The plant recovers essential oil from eucalyptus leaves by distillation for aromatherapy, fragrance, cosmetic, personal-care and pharmaceutical topical use. Eucalyptus citriodora is the species name used alongside Eucalyptus globulus in Mechotech’s eucalyptus distillation case study, and the catalogue also lists a separate Lemon Eucalyptus leaf-oil page.

Mechotech’s Eucalyptus citriodora plant is configured around the leaf feedstock and the target oil. It is built in SS 316L with integrated condensers and oil–water separation, PLC-based automation and full documentation, and is delivered as a commissioned turnkey system. The distillation mode and operating parameters are established during process development and pilot validation. Eucalyptus leaves are large, fresh and moist, so the line is built around chopping the leaves and a still sized for a bulky leaf charge; the case study linked on this page lists Eucalyptus globulus / Eucalyptus citriodora as botanical names and fresh or semi-dried leaves as the feed.

Technical Specifications

Product	Eucalyptus Citriodora Distillation Plant
Botanical Name	Eucalyptus citriodora (name as used in Mechotech’s eucalyptus case study)
Raw Material	Eucalyptus citriodora leaves
Plant Part / Feed Form	Leaves (exact feed form confirmed with the client)
Product Category	Leaves Oils Distillation Plants
Extraction Method	Steam, hydro, vacuum or pressure distillation — selected for the volatility and heat-sensitivity of the target oil
Product-contact Material	SS 316L
Condensation	Multi-tube condenser with chilled-water circulation
Oil–Water Separation	Stainless-steel Florentine flask
Finishing	Polish filtration; drying over anhydrous sodium sulphate or by vacuum
Automation	PLC-based
Plant Capacity	Configured to requirement
Utility Requirements	Steam, chilled/cooling water, compressed air and power (project-specific)
Compliance	GMP hygienic design; full documentation for qualification
Final Product Form	Eucalyptus citriodora essential oil; aromatic hydrosol as co-product

Plant Capacities

Plant Scale	Raw Material Throughput	Typical Use
Pilot	Configured to your feedstock and trial plan	Product development, parameter validation
Semi-Commercial	Configured between pilot and commercial scale	Scale-up trials, contract manufacturing
Commercial	Configured to raw-material supply and confirmed buyer volume	Commercial production

Capacity is configured to raw-material supply, confirmed buyer volume and investment timeline; a pilot plant is recommended to validate parameters before scaling.

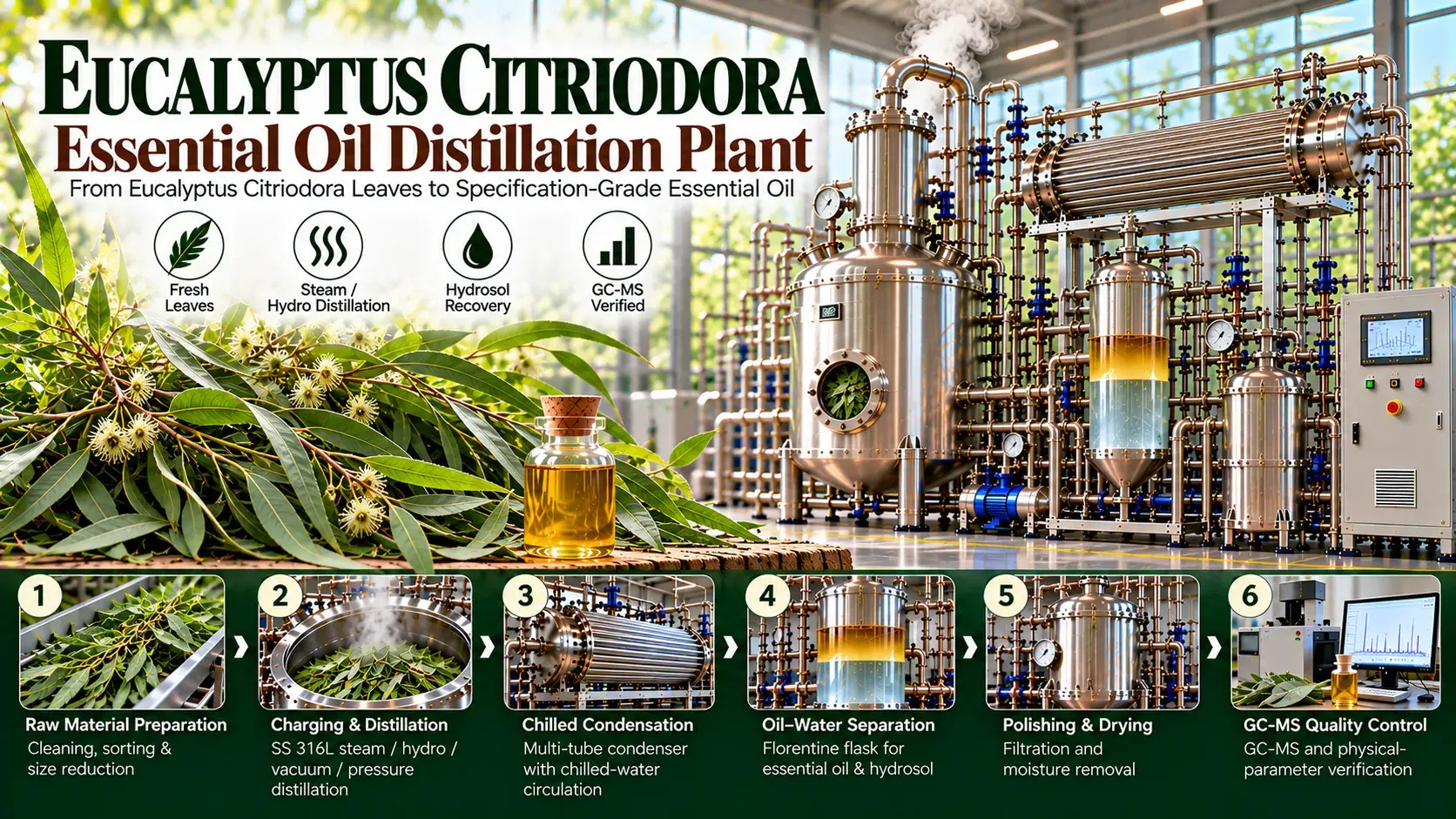

Manufacturing Process

Raw Material Preparation

Eucalyptus citriodora leaves are cleaned and cut or chopped so that steam passes evenly through the bulky leaf bed; the cut size, moisture condition and charge density are set during process development.

Charging & Distillation

The prepared leaf charge is loaded into the SS 316L still and distilled by steam, hydro, vacuum or pressure distillation, selected during process development for the volatility and heat-sensitivity of the target oil.

Condensation

Vapours pass through a multi-tube condenser with chilled-water circulation, condensing the oil and hydrosol.

Oil–Water Separation

Condensate is separated in a stainless-steel Florentine flask; the oil is collected and the hydrosol is drawn off and can be recovered as a co-product.

Polishing & Drying

The crude oil is polish-filtered and dried over anhydrous sodium sulphate or by vacuum to remove residual moisture.

Quality Control

Each batch is sampled for GC-MS profile and physical parameters — specific gravity, refractive index, optical rotation — against the client’s specification.

Major Plant Equipment

Raw material cleaning and sorting system
Size-reduction unit (where required)
SS 316L distillation still / extractor
Multi-tube condenser with chilled-water circulation
Stainless-steel Florentine flask (oil–water separator)
Polish filtration system
Drying unit (anhydrous sodium sulphate or vacuum)
CIP system
PLC-based automation and instrumentation

Plant Output

Eucalyptus citriodora essential oilAromatic hydrosol (co-product)

Case Study

Eucalyptus Essential Oil Distillation Plant

See how this plant was engineered and delivered for a real project.

Applications

Aromatherapy and wellness product formulations
Natural perfumery and fine fragrance compositions
Cosmetics and personal care — moisturisers, serums, shampoos
Pharmaceutical topical formulations and liniments
Food flavouring and beverage applications (food-grade, where permitted)
Insect repellent and household cleaning product formulations
Spa and massage oil products
Natural air fresheners and home fragrance diffusers

Key Features

SS 316L Construction
Product-contact surfaces are SS 316L for corrosion resistance and product purity, with CIP capability between batches.
Efficient Condensation
Multi-tube condensers with chilled-water circulation condense the volatile oil and hydrosol and limit loss of volatile top-notes.
Leaf-Charge Distillation
The still is configured for a bulky eucalyptus leaf charge, with the distillation mode set during process development.
Hydrosol Recovery
Integrated oil–water separation allows the aromatic hydrosol to be drawn off and recovered as a co-product.
Scalable Capacity
Plants are configured to requirement from pilot scale upward, with modular expansion.

Frequently Asked Questions

Does Mechotech supply the complete machinery for Eucalyptus Citriodora?

Yes. Mechotech supplies the complete turnkey plant for Eucalyptus Citriodora — engineered, fabricated at our Hyderabad facility, installed and commissioned as a single integrated system. Final process parameters are established during process development and pilot validation.

What specification can the Eucalyptus Citriodora plant achieve?

The plant is configured to the client’s target specification for Eucalyptus Citriodora; the specification achieved is established during process development and pilot validation, and each batch is released with batch-release testing and certificate-of-analysis documentation.

What production capacities are available for the Eucalyptus Citriodora plant?

Capacity for the Eucalyptus Citriodora plant is configured to raw-material supply, confirmed buyer volume and investment timeline, starting at pilot scale; a pilot plant is recommended to validate parameters before scaling.

Which part of Eucalyptus Citriodora is processed in the distillation plant?

The page is listed under Leaves Oils Distillation Plants, so the feed is eucalyptus leaves. The exact feed form is confirmed with the client before the plant is configured.

How is Eucalyptus Citriodora oil produced in the plant?

The prepared Eucalyptus citriodora leaf charge is loaded into an SS 316L still and distilled by steam, hydro, vacuum or pressure distillation, selected for the volatility and heat-sensitivity of the target oil. Vapours are condensed in a multi-tube condenser, the oil and hydrosol are separated in a Florentine flask, and the crude oil is polish-filtered and dried before GC-MS and physical-parameter testing.

How does this page relate to Mechotech’s Lemon Eucalyptus page?

Both are leaf-oil distillation plants on the same route and are listed as separate catalogue pages. The product tree lists Lemon Eucalyptus (Leaves) and Mechotech’s eucalyptus case study uses the name Eucalyptus citriodora; the two names overlap in common usage and are not merged because the catalogue sources do not state that they are the same product. Confirm the species and chemotype your specification requires, then see Lemon Eucalyptus.

Has Mechotech delivered a eucalyptus oil distillation plant?

Yes. Mechotech’s delivered Eucalyptus Essential Oil Distillation Plant uses steam distillation of eucalyptus leaves and names Eucalyptus globulus / Eucalyptus citriodora depending on product requirements. Process parameters for a specific plant are established during process development and pilot validation.

Which related eucalyptus pages does Mechotech list?

The other eucalyptus leaf-oil distillation pages are Eucalyptus Globulus, Eucalyptus Radiata, Lemon Eucalyptus. Different eucalyptus routes are listed separately: Leaves - Eucalyptus for natural colour extraction and Eucalyptus Leaf Phenolics Extract for phenolics recovery.

Which oil does the Eucalyptus Citriodora page cover, compared with the case study?

Mechotech’s eucalyptus case study names both Eucalyptus globulus and Eucalyptus citriodora, depending on product requirements, and lists high-cineole eucalyptus oil among its finished products. That case study does not give a separate specification for citriodora oil, so the target oil and its marker are agreed with the buyer; the cineole-rich route is on Eucalyptus Globolus.
