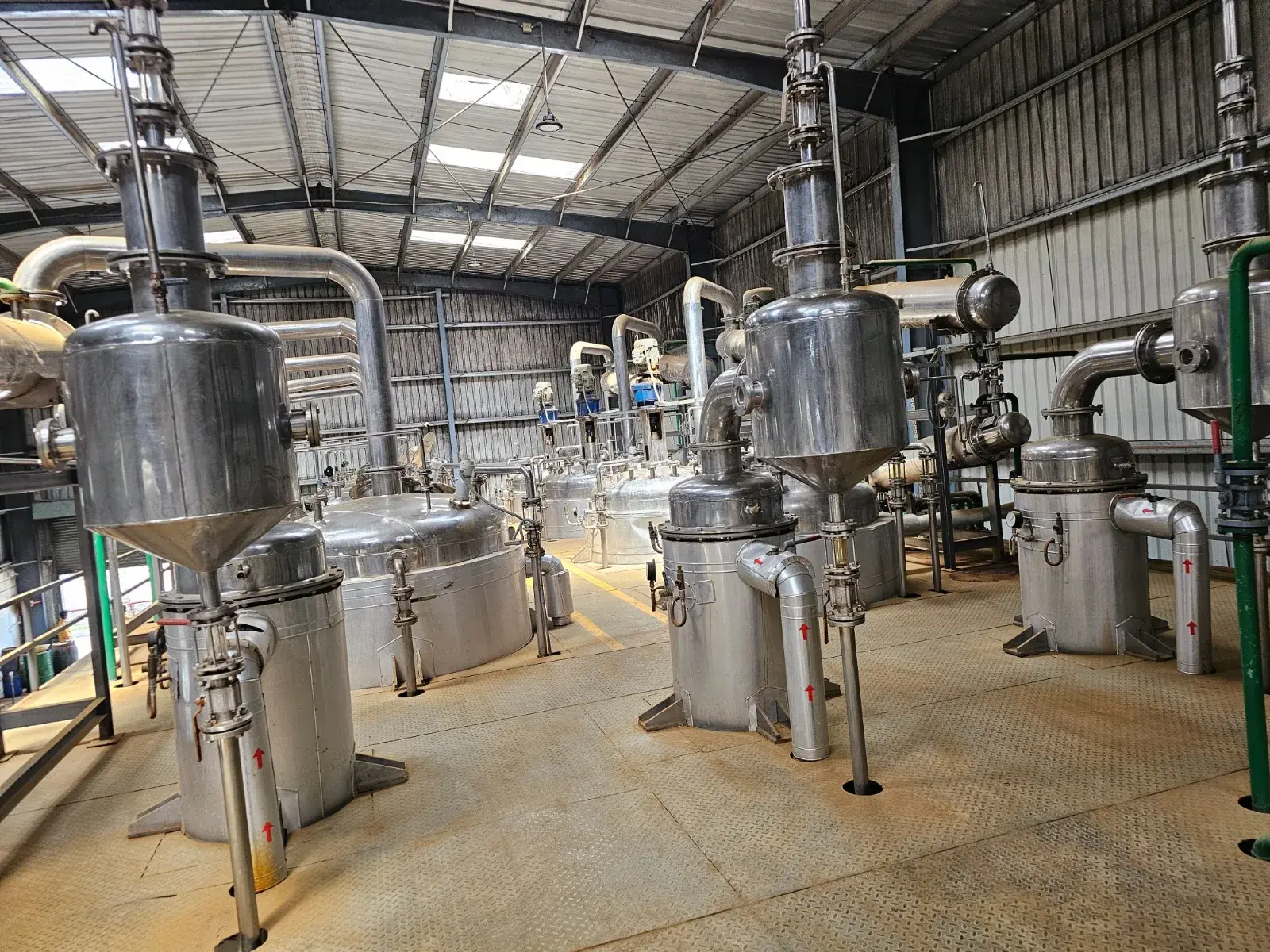

Mechotech designs and manufactures turnkey extraction plants that process aronia berries to recover anthocyanins. We supply the machinery for the route selected after screening — raw-material preparation, extraction, separation, concentration or recovery, and drying or collection — configured to the target specification. Mechotech's technology screening identifies 4 candidate routes for aronia berries and anthocyanins: 4 relevant screening fits, with Counter-Current Extraction (CCE), Ultrasound-Assisted Extraction (UAE) and Microwave-Assisted Extraction (MAE) jointly best-ranked (rank 56 of 100).

For aronia berries with anthocyanins as the target, there are 4 candidate technologies: Counter-Current Extraction (CCE), Ultrasound-Assisted Extraction (UAE), Hybrid Extraction and Microwave-Assisted Extraction (MAE). By route — Counter-Current (CCE): relevant screening, rank 56 of 100, ethanol/water or suitable food-grade solvent; Ultrasound (UAE): relevant screening, rank 56 of 100, ethanol/water or water; Hybrid: relevant screening, rank 61 of 100, sequence selected by target; Microwave (MAE): relevant screening, rank 56 of 100, ethanol/water or water. For the first-listed of the best-ranked routes, Counter-Current (CCE), the screening flags: counter-current contact and solvent recovery; verify bed flow and fines management. These are screening candidates rather than guarantees: the final technology, operating parameters and plant configuration are established during process development and pilot validation. Product-contact parts are built in SS 316L with CIP-cleanable design, and automation is configured to the project.

Technical Specifications

Product	Aronia Berry Extract Plant
Feedstock	Aronia berries
Part / Feed Form	Berries
Target Extract	Anthocyanins
Extraction Method	Counter-current, UAE, Hybrid, MAE
Technology Count	4
Product-contact Material	SS 316L, electropolished, CIP-cleanable
Automation	PLC-SCADA, configured to requirement

Plant Capacities

Plant Scale	Berry Throughput	Typical Use
Pilot	Configured to your feedstock and trial plan	Product development, parameter validation
Semi-Commercial	Configured to raw-material supply and buyer volume	Contract manufacturing, scale-up trials
Commercial	Configured to raw-material supply and confirmed buyer volume	Commercial production at confirmed buyer volume

Capacity is configured to raw-material supply and confirmed buyer volume; we recommend a pilot plant to validate process parameters before scaling. No fixed throughput is quoted for this product.

Manufacturing Process

Each extraction method follows a different process — pick a method to see its steps.

Raw-Material Preparation

Aronia berries are cleaned and size-reduced so anthocyanins can be reached by the extraction medium; particle size and moisture are set during process development.

Counter-Current Loading

Prepared aronia berries are fed into a multi-stage solid–liquid counter-current extractor where fresh ethanol/water or a suitable food-grade solvent meets the most-depleted material.

Counter-Current Extraction

Solvent flows against the solids across stages to draw out anthocyanins; bed flow and fines management are verified during pilot work.

Extract (Miscella) Collection

The anthocyanins-bearing miscella is collected from the fresh-feed end while spent solids are discharged from the solvent-entry end.

Concentration & Solvent Recovery

Solvent is removed from the clarified anthocyanins-bearing extract under vacuum and returned through a solvent-recovery loop; recovery performance is confirmed at pilot scale.

Standardisation & Drying

The anthocyanins extract is assayed against the declared target specification and dried or supplied as a concentrate, according to the requirement.

Major Plant Equipment

Raw-material cleaning and size-reduction system
Feed conditioning / moisture-adjustment system
Multi-stage counter-current extractor
Solvent storage tanks and transfer pumps
Ultrasonic extraction vessel with transducer system
Combined extraction train (stage equipment per the sequence selected during process development)
Microwave extraction vessel with temperature and safety controls
Filtration / centrifugation system
Vacuum evaporator
Solvent recovery system with condensers
Dryer (where a dried form is specified)
CIP (clean-in-place) system
Storage and finished-product tanks
PLC-SCADA control panel and instrumentation

Plant Output

Anthocyanins extract

Applications

Pharmaceutical standardised ingredient supply — Aronia Berry Extract
Nutraceutical capsule, tablet, and supplement manufacturing — Aronia Berry Extract
Food and beverage applications — Aronia Berry Extract
Cosmetic and personal care active ingredients — Aronia Berry Extract
Export to regulated-market ingredient buyers — Aronia Berry Extract

Key Features

Joint Best-Ranked Routes — Relevant Screening Fit
Joint best-ranked routes for aronia berries: Counter-Current (CCE), Ultrasound (UAE) and Microwave (MAE), all at rank 56 of 100 in their respective screenings. Ranks are directional screening priorities, not measured yield, ROI or plant guarantees.
4 Candidate Routes
Routes screened for aronia berries: Counter-Current (CCE) — relevant, rank 56; Ultrasound (UAE) — relevant, rank 56; Hybrid — relevant, rank 61; Microwave (MAE) — relevant, rank 56. Each route has its own process tab above.
Berries Feed Form
The candidate routes are defined for aronia berries; feedstock assay and moisture are measured as pilot inputs and the feed form is set during process development.
Parameters Fixed After Pilot Trials
Recovery of anthocyanins, selectivity, solvent or water duty, quality and cleaning are measured in pilot trials, starting with small-scale feed trials, before final plant parameters are fixed.
SS 316L Hygienic Construction
Product-contact surfaces are SS 316L and CIP-cleanable, in a hygienic design suited to food, nutraceutical and pharmaceutical supply chains; PLC-SCADA automation with recipe control can be configured to the project scope.

Frequently Asked Questions

What is an aronia berries extraction plant for anthocyanins?

It is a turnkey Mechotech plant that processes aronia berries to recover anthocyanins. The plant covers raw-material preparation, extraction, separation, concentration or fraction collection, and drying or packing, and is configured to the target specification. It sits within Mechotech's wider range of herbal extraction plants.

Which plant part or feed form does the aronia plant process?

The candidate feedstock is aronia berries. The target extract is anthocyanins.

Which extraction technologies are suitable for aronia berries?

This feedstock has 4 candidate technologies: Counter-Current Extraction (CCE) (relevant screening), Ultrasound-Assisted Extraction (UAE) (relevant screening), Hybrid Extraction (relevant screening) and Microwave-Assisted Extraction (MAE) (relevant screening). See the related pages on counter-current extraction, ultrasound-assisted extraction, hybrid extraction and microwave-assisted extraction. These are screening candidates, not guarantees of yield, purity or recovery; the route is confirmed through process development and pilot validation. In Mechotech's technology screening these candidates are ranked directionally — relevant: Counter-Current Extraction (rank 56 of 100), Ultrasound-Assisted Extraction (rank 56 of 100), Hybrid Extraction (rank 61 of 100), Microwave-Assisted Extraction (rank 56 of 100). Ranks are directional screening priorities at method-family level, not measured yield, ROI or plant guarantees.

How does Mechotech's screening rank the candidate routes for aronia berries?

Each technology list in Mechotech's screening ranks 100 feedstock–target opportunities (1 = highest priority). For aronia berries: Counter-Current (CCE) rank 56 (relevant); Ultrasound (UAE) rank 56 (relevant); Hybrid rank 61 (relevant); Microwave (MAE) rank 56 (relevant). The best-ranked routes are Counter-Current (CCE), Ultrasound (UAE) and Microwave (MAE). Ranks are directional screening priorities, not measured yield, ROI or plant guarantees, and the evidence is at method-family level, so every route needs pilot validation.

What equipment does the Aronia Berry extraction plant include?

The equipment follows the selected route and includes raw-material cleaning and size-reduction system; feed conditioning / moisture-adjustment system; multi-stage counter-current extractor; solvent storage tanks and transfer pumps; ultrasonic extraction vessel with transducer system; combined extraction train (stage equipment per the sequence selected during process development); microwave extraction vessel with temperature and safety controls; filtration / centrifugation system. The full list is shown under Major Plant Equipment.

How does the aronia berries extraction process work?

Each listed route has its own steps — Counter-Current (CCE): Counter-Current Loading → Counter-Current Extraction → Extract (Miscella) Collection; Ultrasound (UAE): Slurrying → Ultrasonic Cavitation → Separation; Hybrid: Stage Sequence Selection → First Assisted Stage → Second / Combined Stage; Microwave (MAE): Medium Mixing → Microwave Heating & Extraction → Separation. All routes share the same outline: prepare aronia berries, extract anthocyanins using the technology-specific step, separate and clarify the extract, concentrate it, and recover, standardise and dry. The process tabs above show every step.

What output and specification can the aronia plant deliver?

The listed output is anthocyanins extract. The plant is configured to a customer-declared specification for anthocyanins. No fixed purity, grade or yield is claimed until pilot results are available.

What application areas are listed for Aronia Berry Extract?

The application areas listed on this page are: pharmaceutical standardised ingredient supply; nutraceutical capsule, tablet, and supplement manufacturing; food and beverage applications; cosmetic and personal care active ingredients; export to regulated-market ingredient buyers.

Which related Mechotech extraction pages cover the same material or target?

Other phenolic and polyphenol targets are covered for apricot kernels and apple pomace.

What capacity is available and is a pilot trial recommended?

Capacity is configured to requirement. Mechotech's technology screening recommends starting with small-scale feed trials to measure recovery, selectivity, solvent or water duty, quality and cleaning before pilot and commercial plant sizes are fixed.
